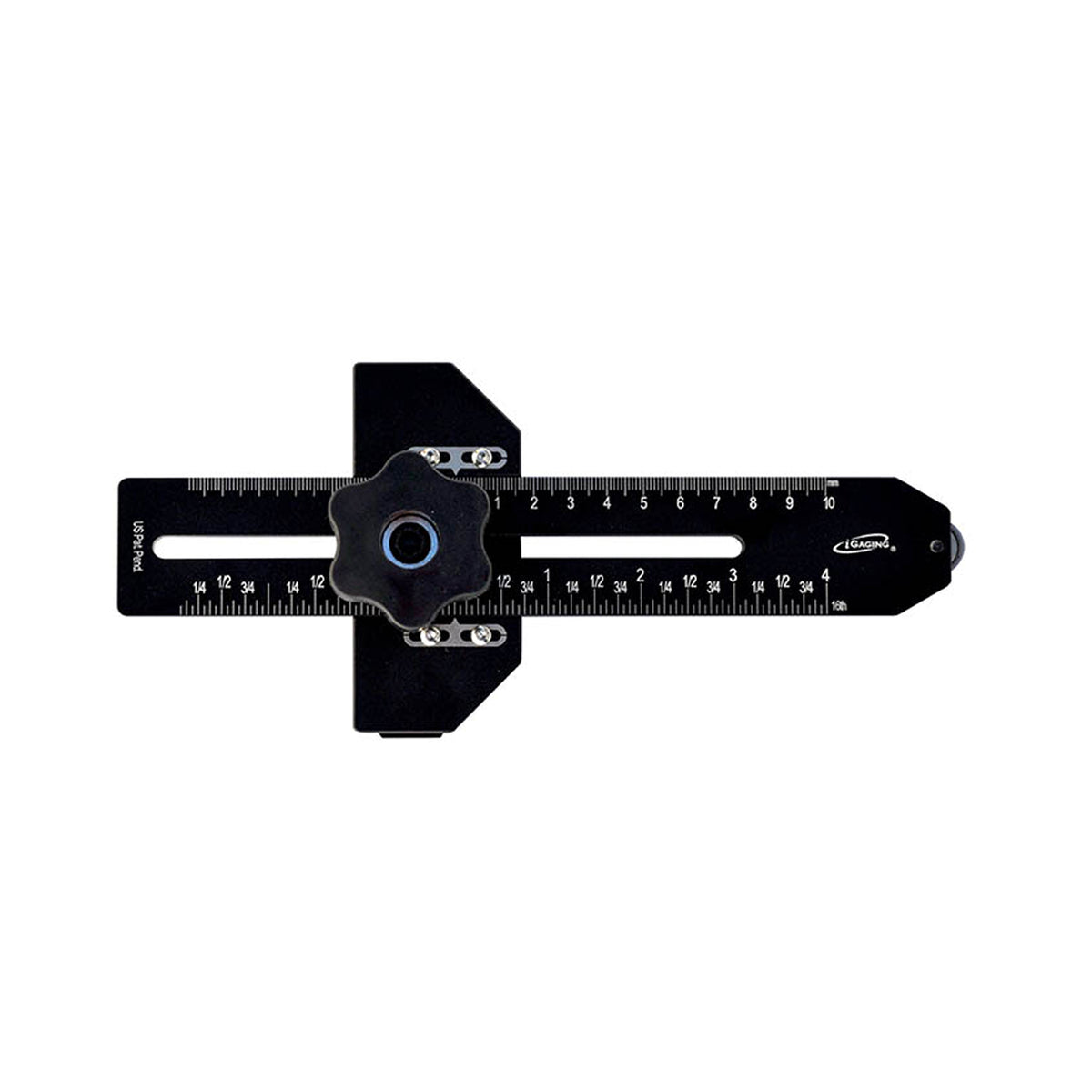

Thin Rip Table Saw Jig

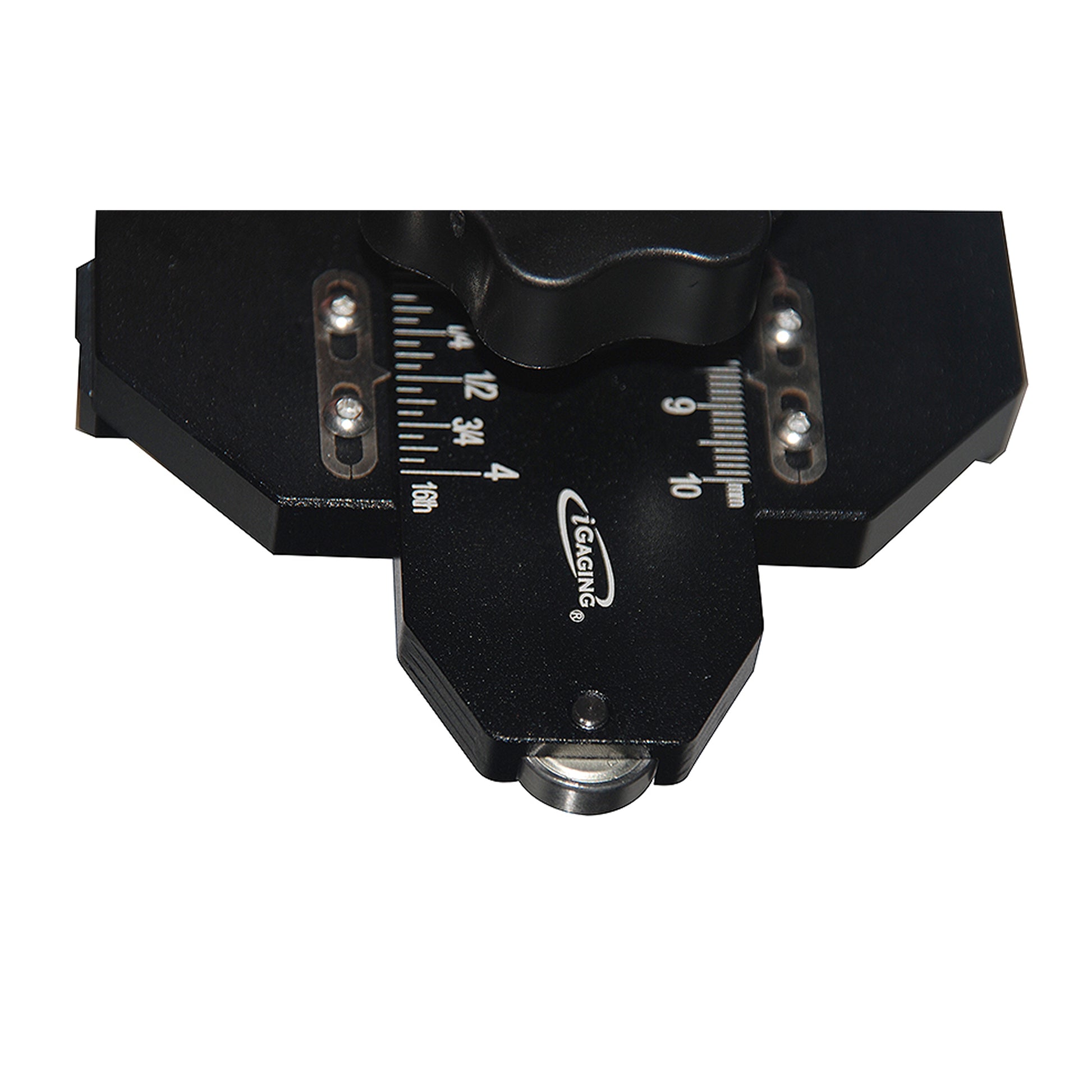

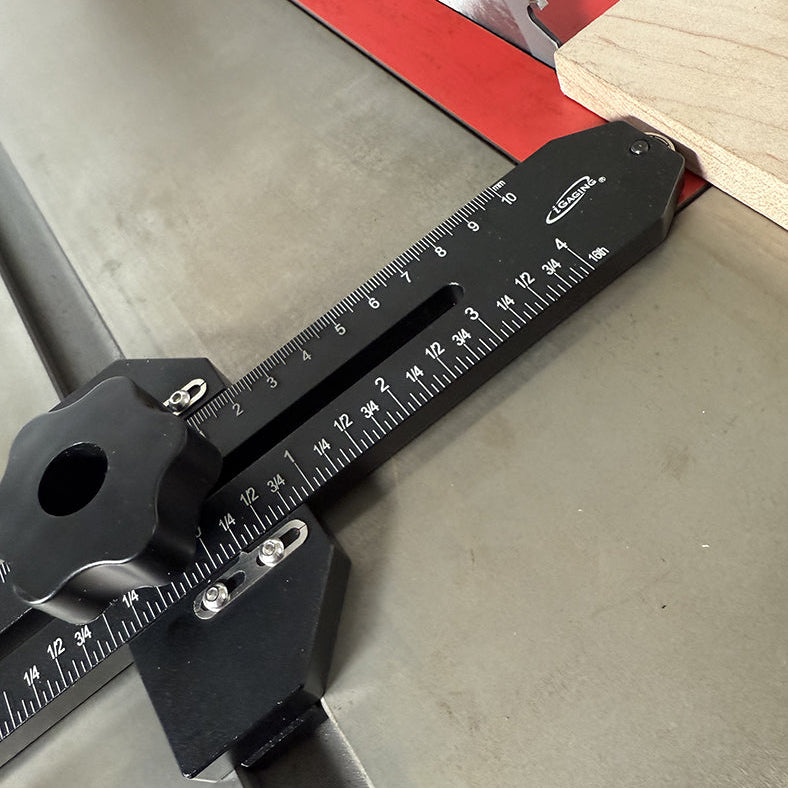

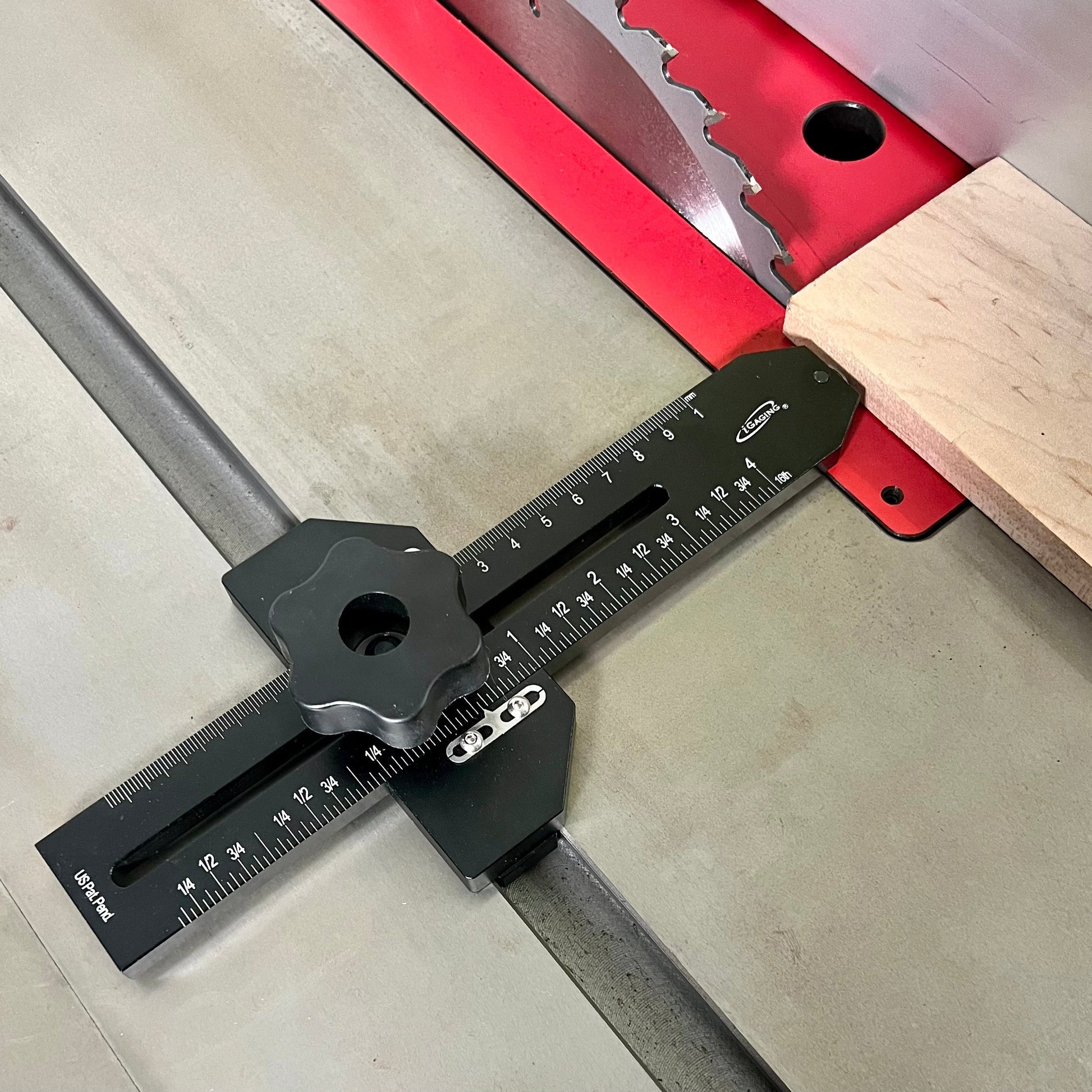

Easy to use, featuring a single robust grip knob that securely locks it into the miter track. Its scale, with 1/16 " and 1 mm graduations, enables precise adjustments. The roller bearing guide ensures your work piece stays firmly against the fence and serves as a stop for consistent, repeatable cuts. Simply cut a strip, reposition the saw fence to align the stock with the ball bearing, and then cut the next thin strip.

•CNC Metal Body
•Strong Grip locks in at any point along the miter track and before the blade
•For 3/4 " miter slot

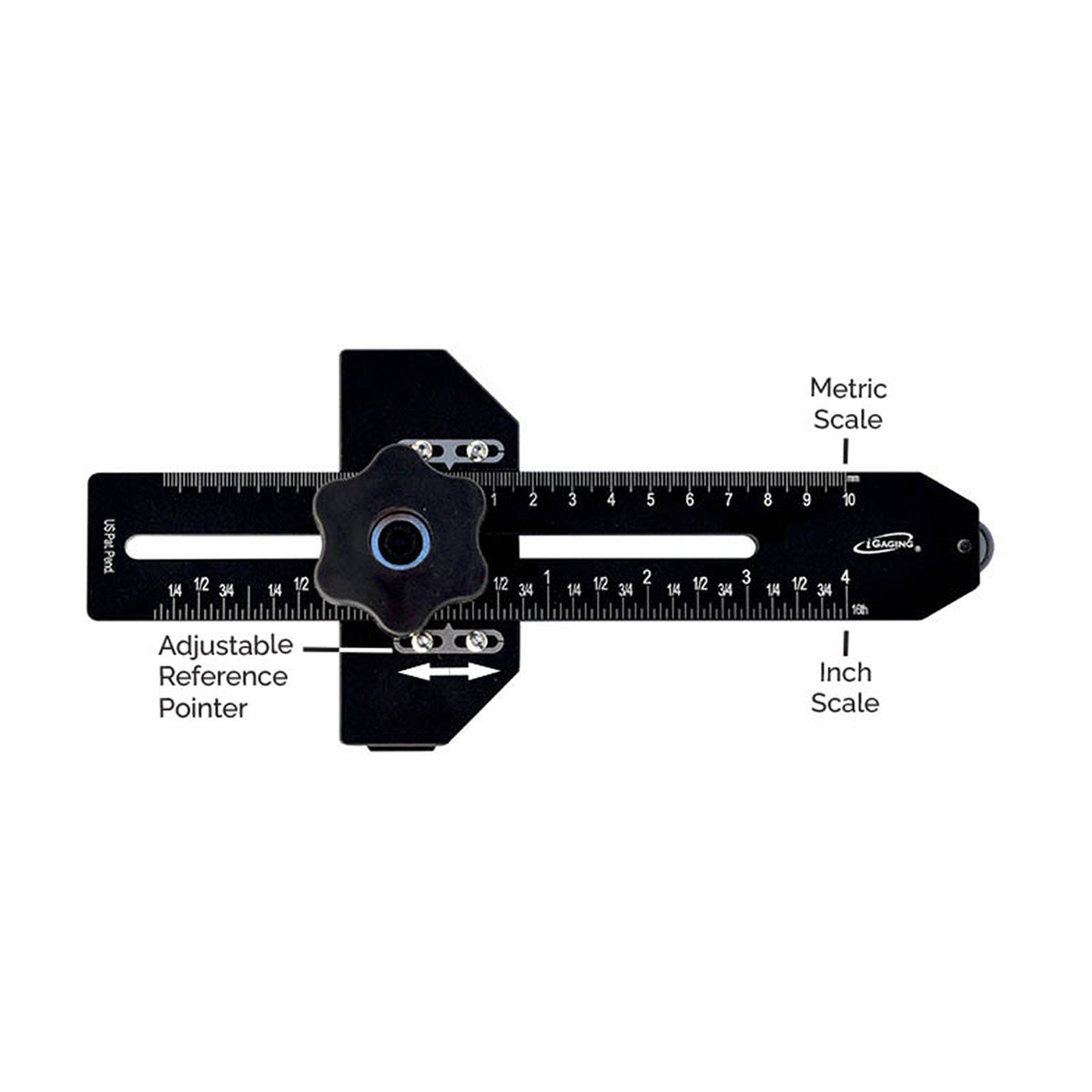

•Laser-engraved inch and metric marking scales

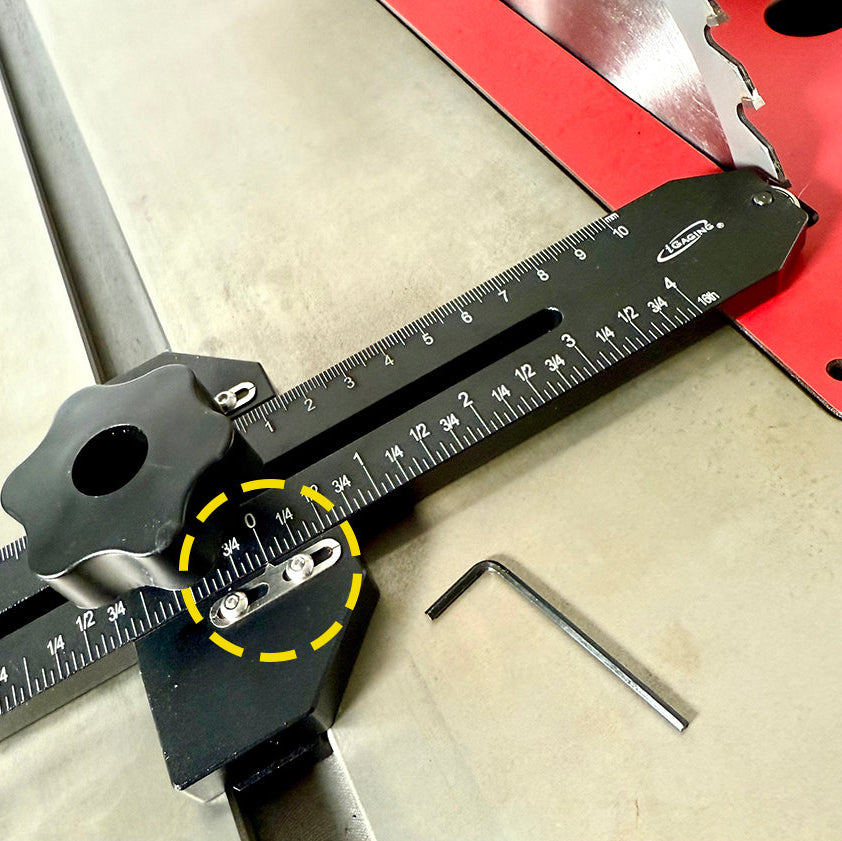

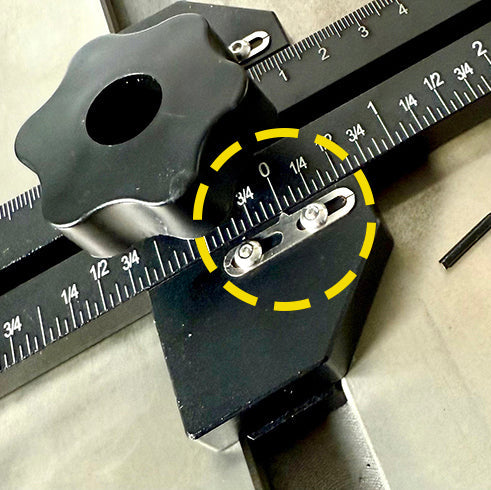

•Fine Adjust Reference Pointer
•Anodized aluminum body
•8"/200 mm travel capacity
•Accuracy: 0.0015"
•M2 Hex Key

Product Instructions

Download the product instruction manual here:
[Download PDF]
