Precision Depth Gauge Sets Dial & Digital

• Dial/Digital Indicator range: 0 - 1"/25 mm
• Measuring range with extensions: 0 - 22"/550 mm
• Thread size: #4 - 48
• Stem dia.: 3/8"
• 1", 2", 3", 4", 5" and 6" extensions included
• 400-D68, D69 include: ball, point, 1.26" point and 1.26" spindle measuring tips
• 400-D70 includes: ceramic ball, point and spindle measuring tips
• 4" base with two treaded indicator mounting positions
• Supplied in protective case

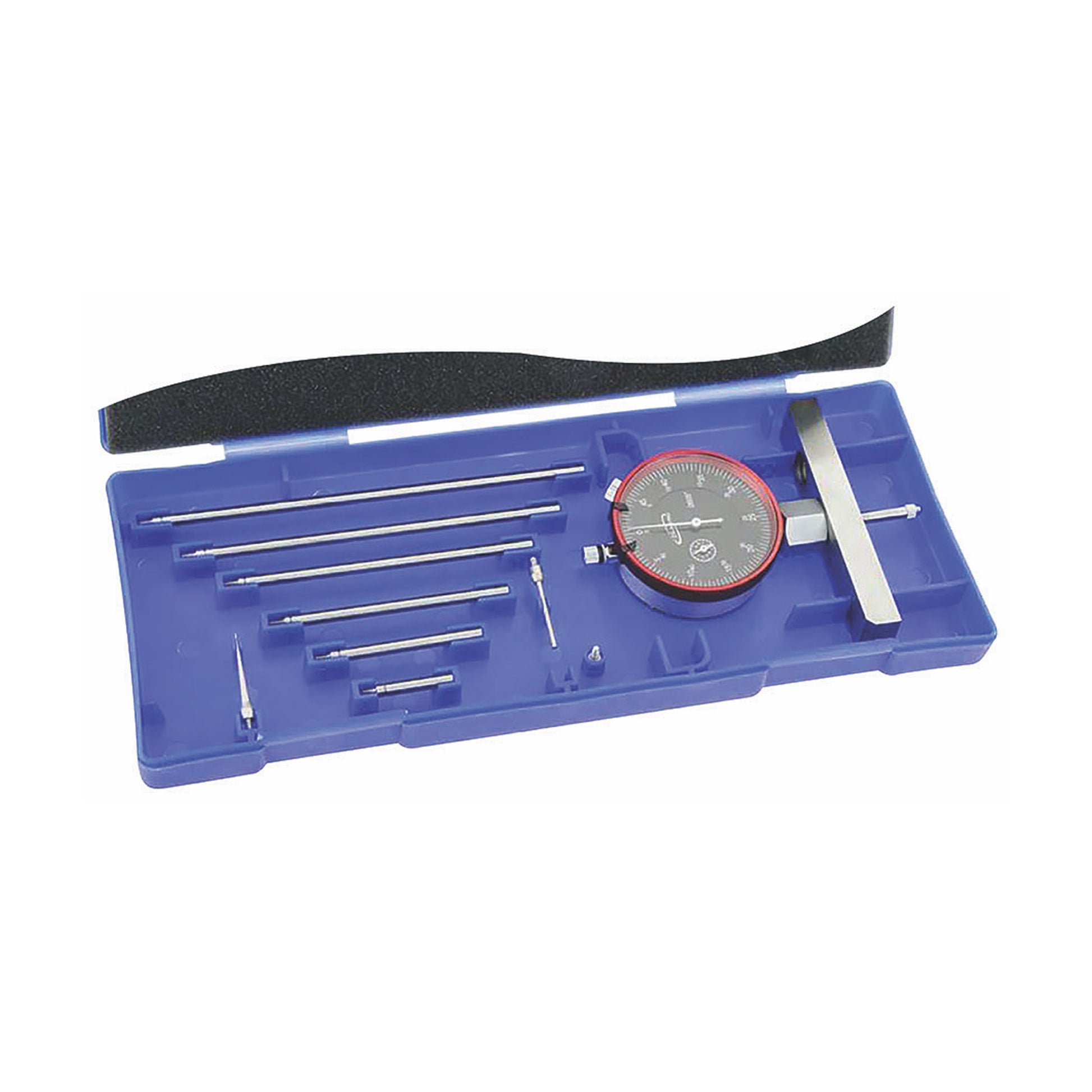

Dial Depth Gauge Set - (400-D68)
• Dial reading: 0 - 50
• Resolution: 0.0005"
• Accuracy: ±0.0005"
• Repeatability: 0.0005"
• Tolerance: ±0.001"

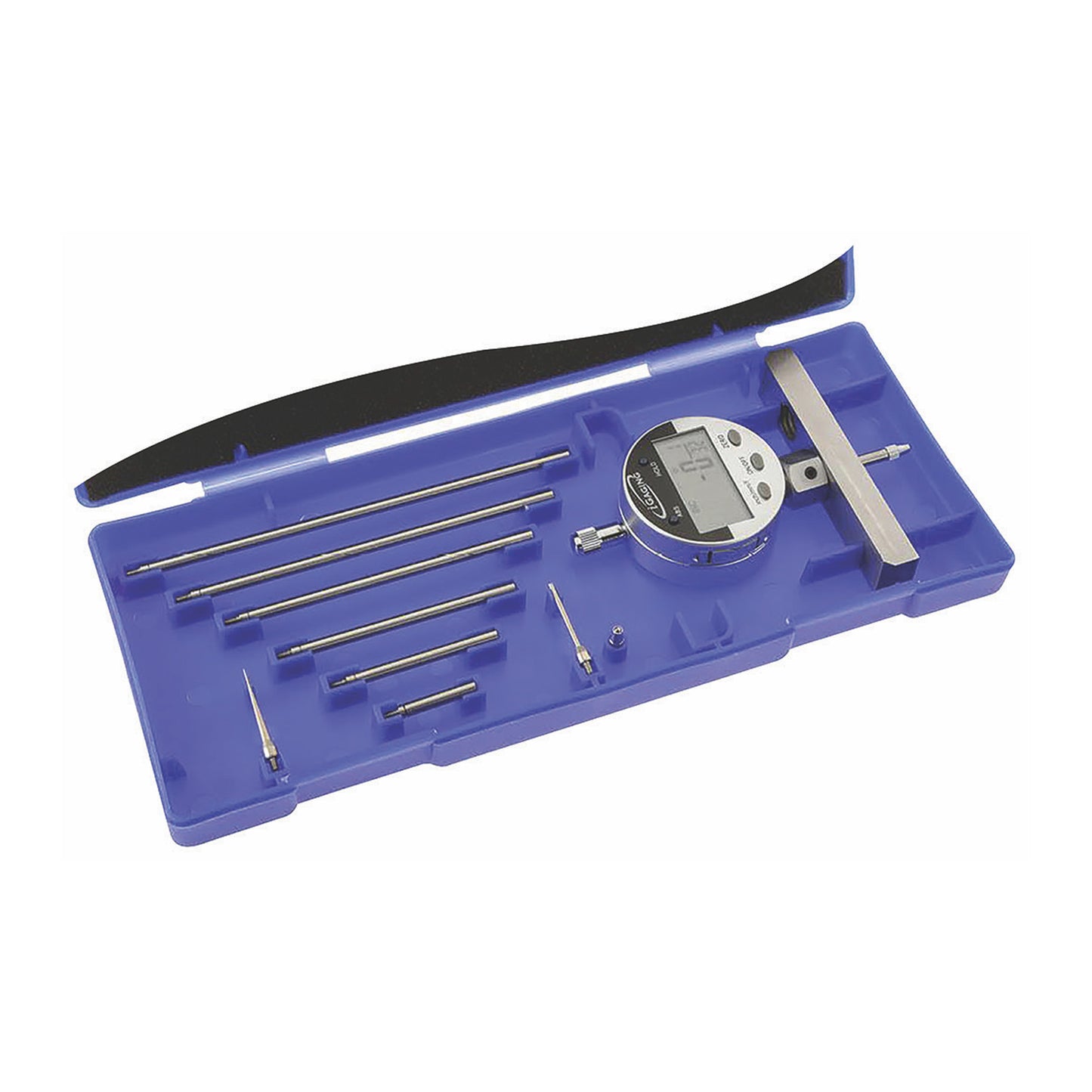

EZ-Indi Digital Depth Gauge Set - (400-D69)
• Absolute and incremental reading
• Resolution: 0.0005"/0.01 mm/ 1/128"
• Accuracy: ±0.001"/0.03 mm
• Repeatability: 0.0005"/0.01mm
• Easy to read LCD display
• Auto shut-off
• Battery: 3V CR2032 included

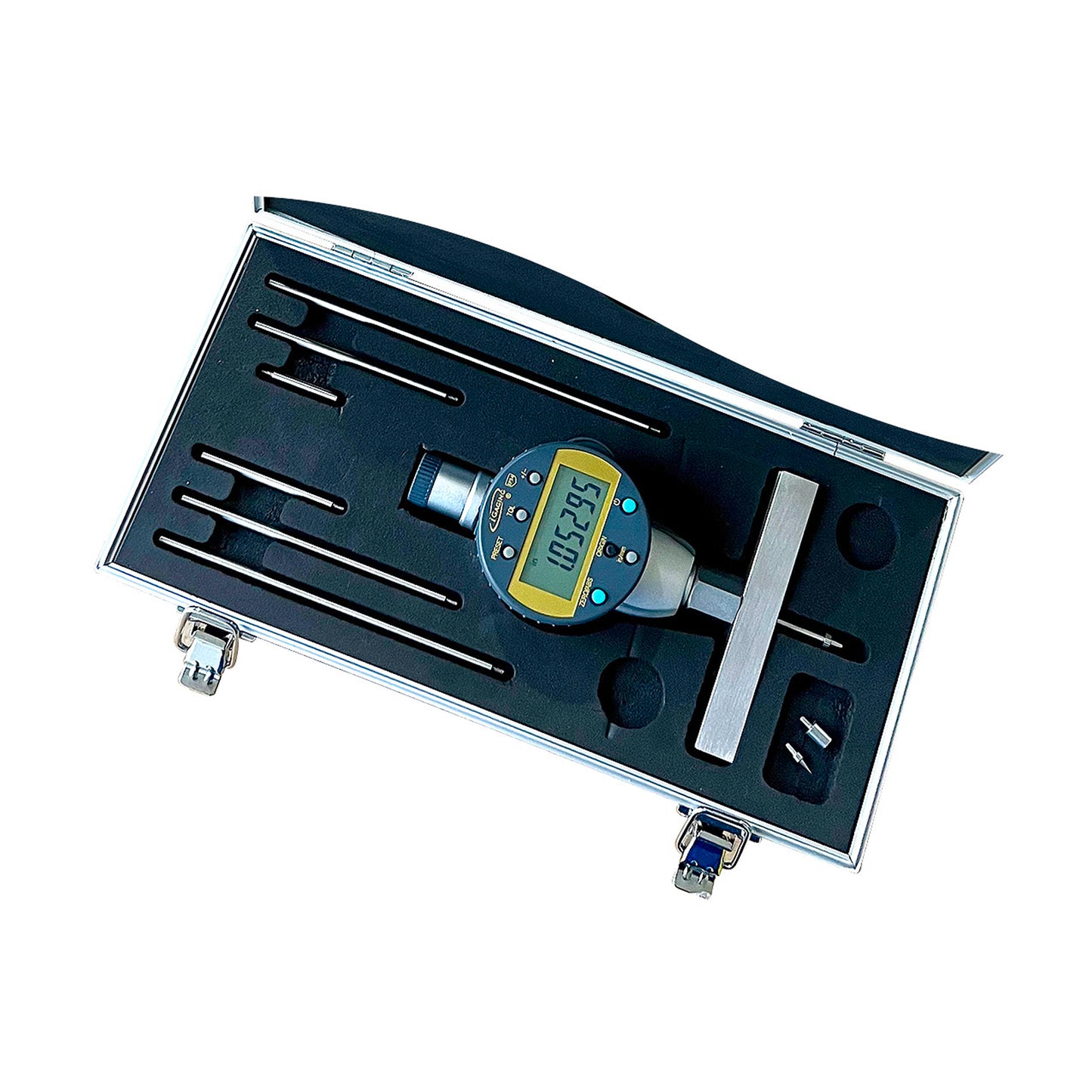

iP54 Absolute Origin Digital Depth Gauge Set - (400-D70)
• iP54 protective rating: Moisture and dust resistance
• Resolution: 0.00005"/0.001 mm
• Accuracy: 0.00016"/0.004 mm
• Repeatability: 0.00005"/0.001 mm
• Absolute encoding technology Memorize absolute origin zero
• Inch/Metric conversion
• High contract LCD display
• 330° display rotation.
• Preset and tolerance function
• Ceramic contact point
• Battery: 3V CR2032 included
• SPC/USB data output
• Smart Wireless Data Output connects to Bluetooth device

*works with 400-D70 iP54 Digital Depth Gauge Set

Product Instructions

Download the product instruction manual here:
400-D68 [Download PDF]
400-D69 [Download PDF]
400-D70 [Download PDF]
