iGAGING

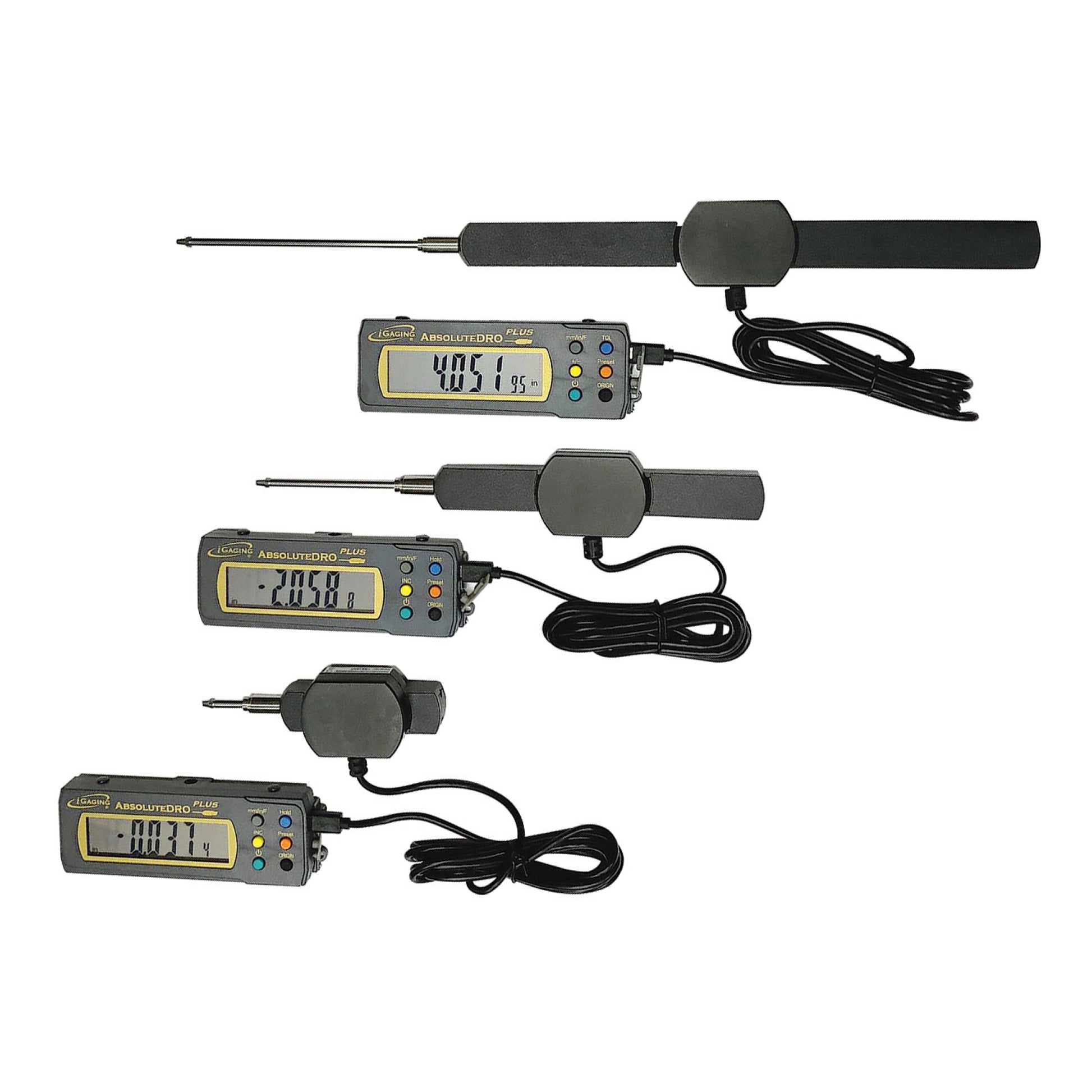

iP65 Absolute Origin Indicator Probes with REMOTE Digital Readout

iP65 Absolute Origin Indicator Probes with REMOTE Digital Readout

$159.99 USD
$159.99 USD
Sale Sold out
Shipping calculated at checkout.
Options

• iP65 protective rating: Coolants, grit and dust proof
• Absolute encoding technology
Memorize absolute origin zero
• Ultra-Response measure speed
• Gauge is sealed for remote and tough environment, remote access display included
• Inch/Metric conversion
• Remote readout LCD display with 48" cable
• Preset button
• Hold button
• Stem dia.: 3/8"
• Thread size: #4-48
• Ceramic contact point

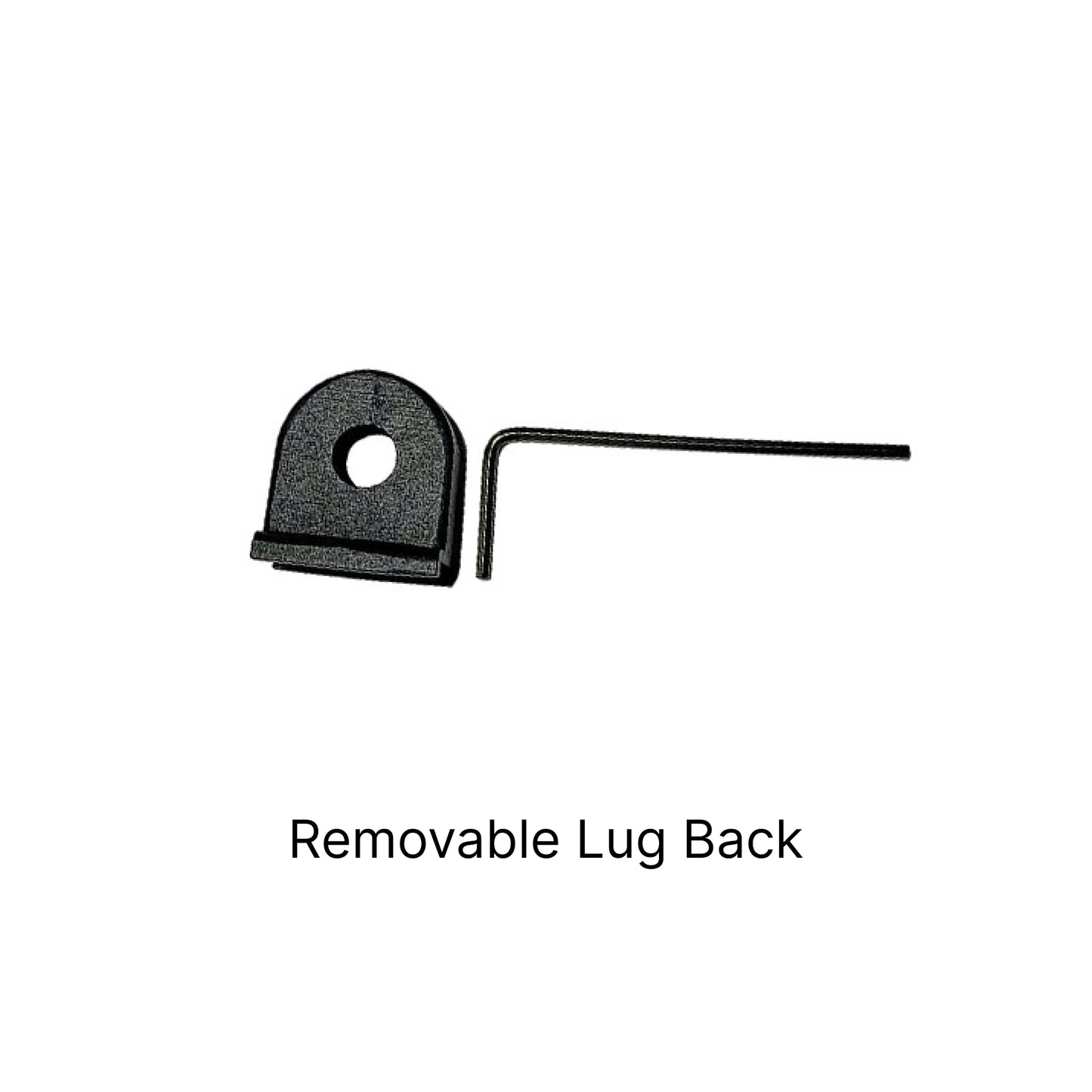

• Removable wlug back included
• Attachable finger lever included (except for 0 - 0.5" sizes)
• SPC/USB data output
• Battery: 3V CR2032 included
• Supplied in protective box


Item # Range Resolution Accuracy Repeatability
35-958-12 0 - 0.5" / 12.7 mm 0.00005" / 0.001 mm 0.00016" / 0.005 mm 0.00005" / 0.001 mm
35-999-12 0 - 0.5" / 12.7 mm 0.0005" / 0.01 mm 0.0005" / 0.01 mm 0.0005" / 0.01 mm
35-958-25 0 - 1" / 25.4 mm 0.00005" / 0.001 mm 0.00016" / 0.005 mm 0.00005" / 0.001 mm
35-999-25 0 - 1" / 25.4 mm 0.0005" / 0.01 mm 0.0005" / 0.01 mm 0.0005" / 0.01 mm
35-958-50 0 - 2" / 50.8 mm 0.00005" / 0.001 mm 0.0002" / 0.006 mm 0.00005" / 0.001 mm
35-999-50 0 - 2" / 50.8 mm 0.0005" / 0.01 mm 0.0005" / 0.015 mm 0.0005" / 0.01 mm
35-958-99 0 - 4" / 101.6 mm 0.00005" / 0.001 mm 0.0003" / 0.01 mm 0.00005" / 0.002 mm
35-999-99 0 - 4" / 101.6 mm 0.0005" / 0.01 mm 0.001" / 0.02 mm 0.0005" / 0.01 mm
