iGAGING

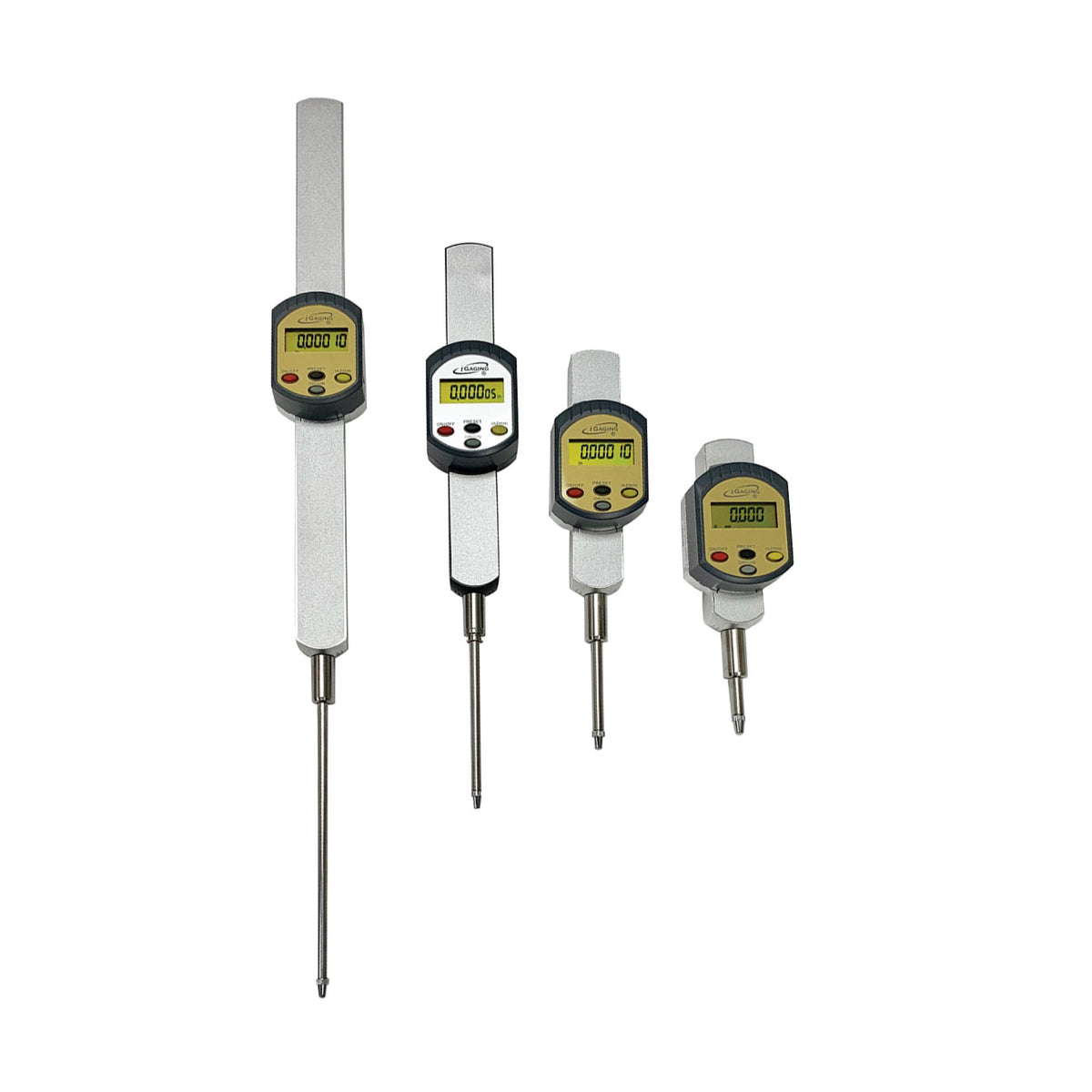

iP65 ABSolute-Indi Digital Indicator Probes

$143.99 USD

Sale Sold out

Shipping calculated at checkout.

Options 0–0.5" High Resolution — 35-950-12 0–0.5" Standard Resolution — 35-955-12 0–1" High Resolution — 35-950-25 0–1" Standard Resolution — 35-955-25 0–2" High Resolution — 35-950-50 0–2" Standard Resolution — 35-955-50 0–4" High Resolution — 35-950-99 0–4" Standard Resolution — 35-955-99

• iP65 protective rating: Coolants, grit and dust proof
• Absolute encoding technology
Memorize absolute origin zero
• Ultra-Response measure speed
• Inch/Metric conversion
• High contract LCD display
• Preset button
• Stem dia.: 3/8"
• Thread size: #4-48
• Ceramic contact point

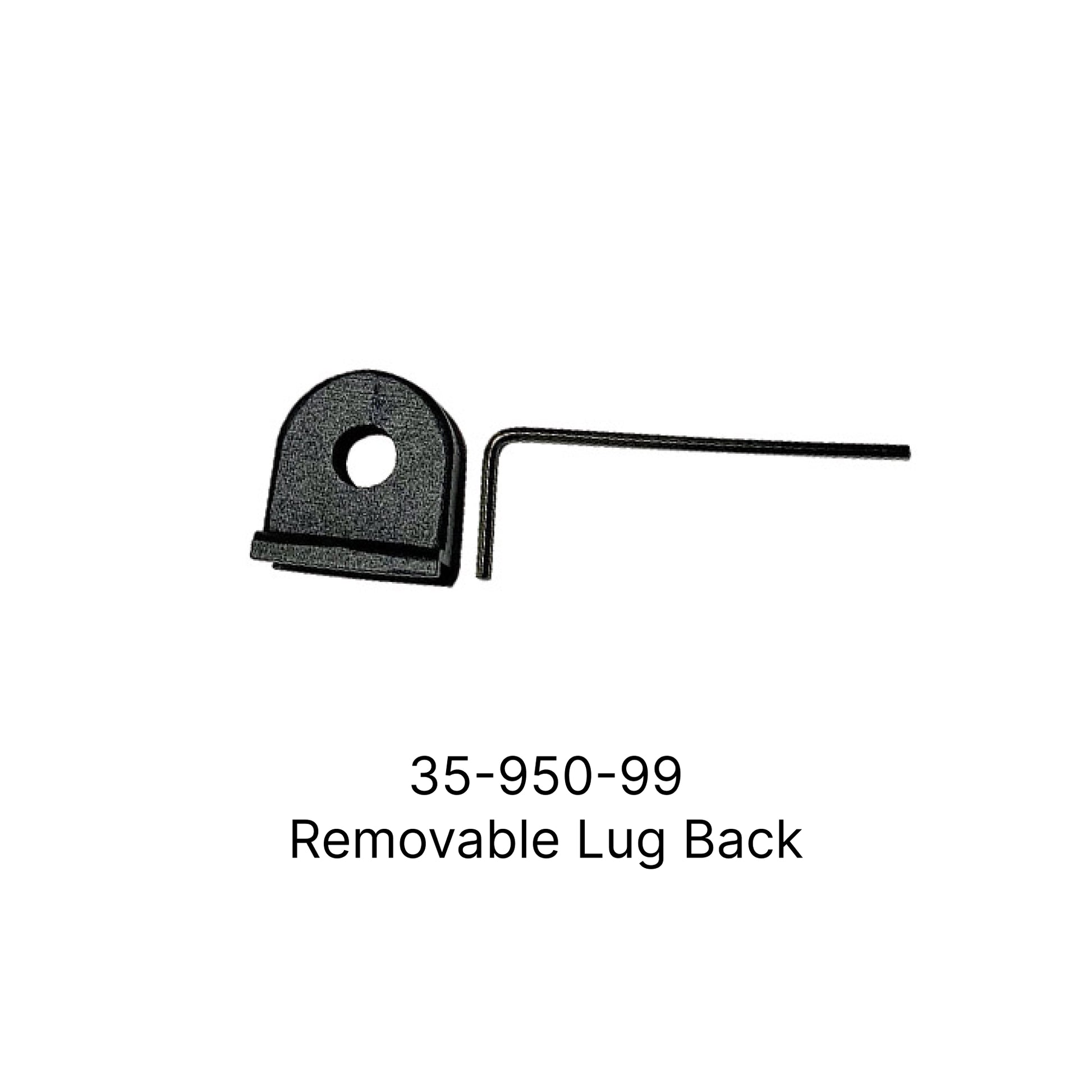

• Lug and flat back included
• Attachable finger lever included (except for 0 - 0.5" sizes)
• SPC/USB data output
• Battery: 3V CR1632 included
• Supplied in fitted box

Specifications

Item #	Range	Resolution	Accuracy	Repeatability
35-950-12	0 - 0.5" / 12.7 mm	0.00005" / 0.001 mm	0.00016" / 0.005 mm	0.00005" / 0.001 mm
35-955-12	0 - 0.5" / 12.7 mm	0.0005" / 0.01 mm	0.0005" / 0.01 mm	0.0005" / 0.01 mm
35-950-25	0 - 1" / 25.4 mm	0.00005" / 0.001 mm	0.00016" / 0.005 mm	0.00005" / 0.001 mm

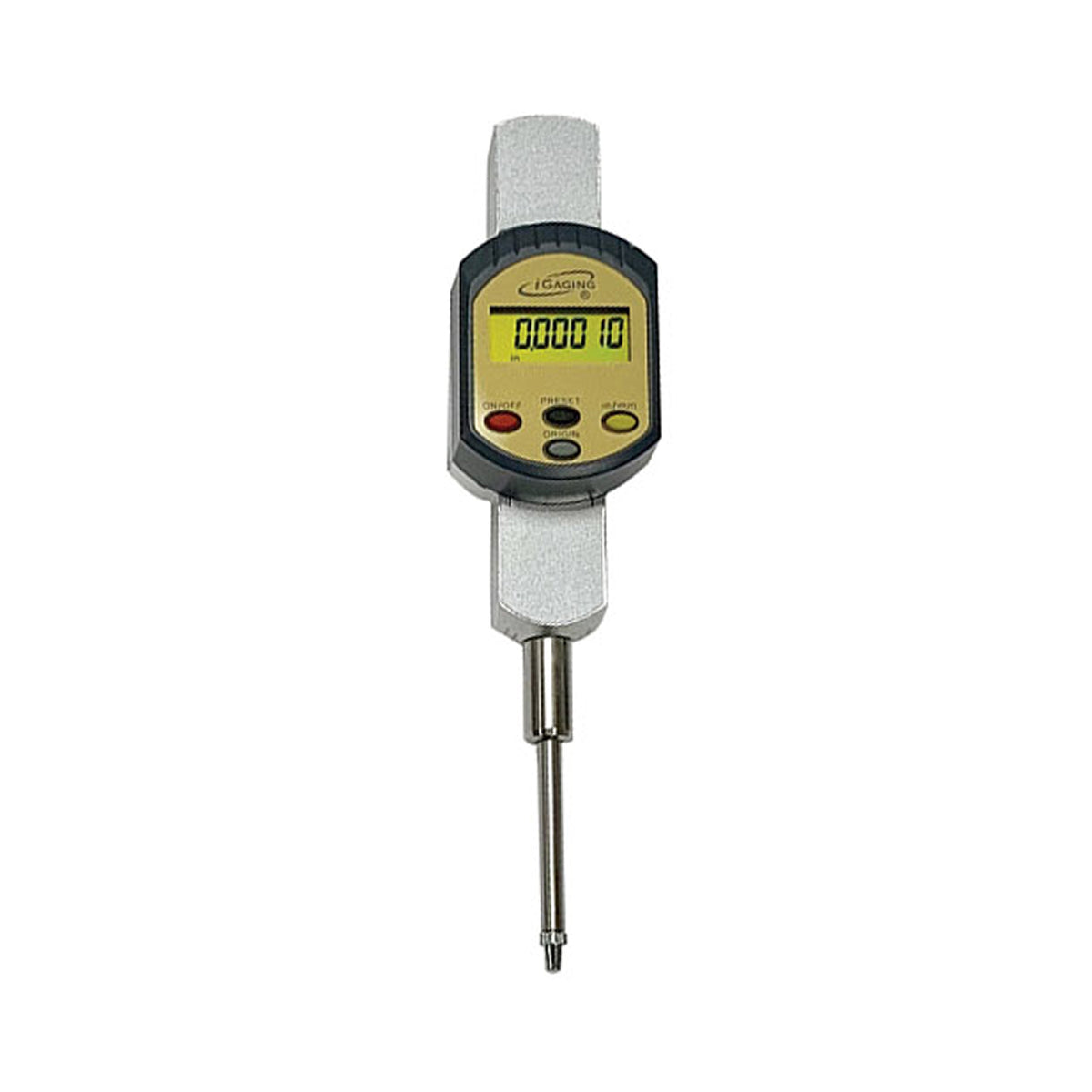

35-955-25	0 - 1" / 25.4 mm	0.0005" / 0.01 mm	0.0005" / 0.01 mm	0.0005" / 0.01 mm

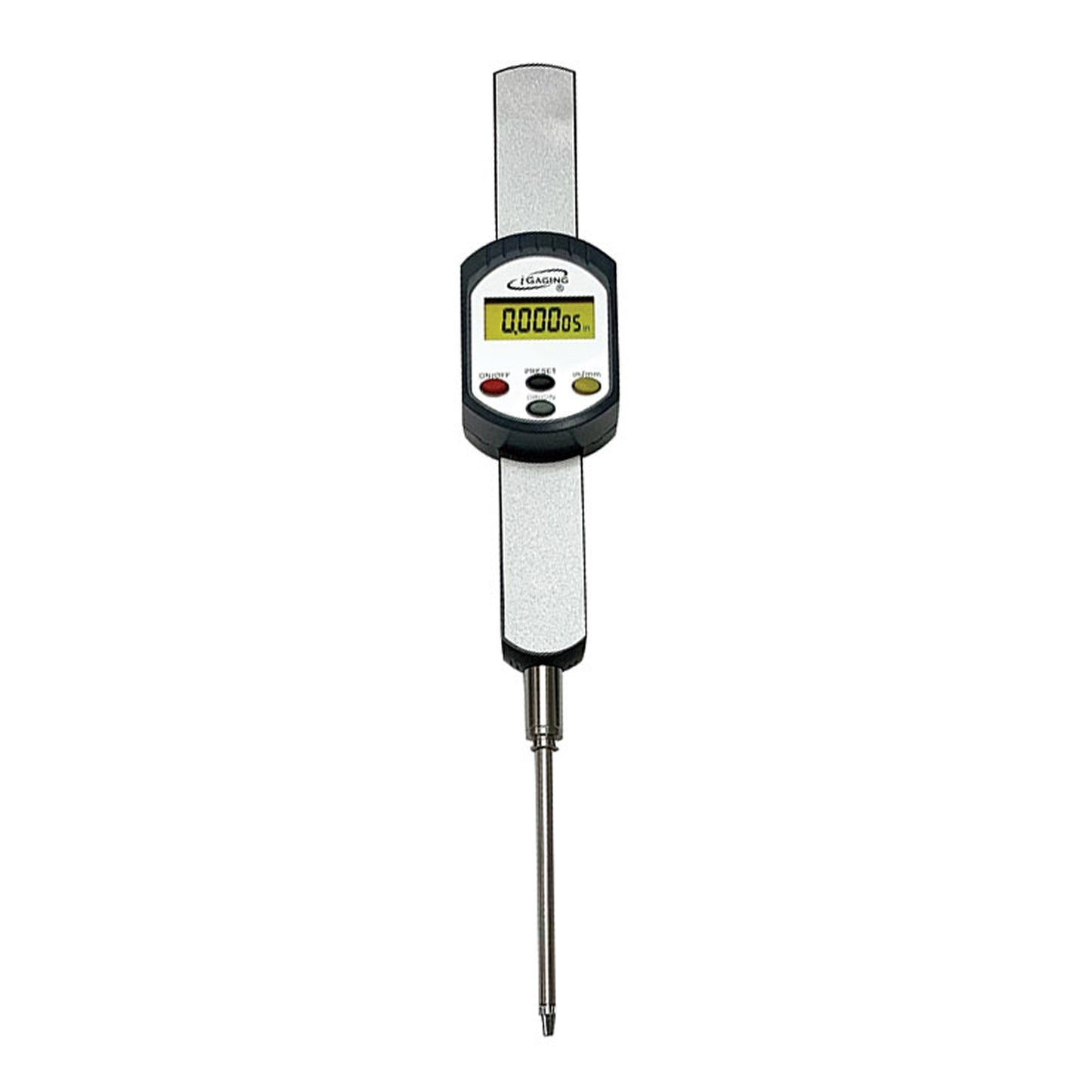

35-950-50	0 - 2" / 50.8 mm	0.00005" / 0.001 mm	0.0002" / 0.006 mm	0.00005" / 0.001 mm
35-955-50	0 - 2" / 50.8 mm	0.0005" / 0.01 mm	0.0005" / 0.015 mm	0.0005" / 0.01 mm

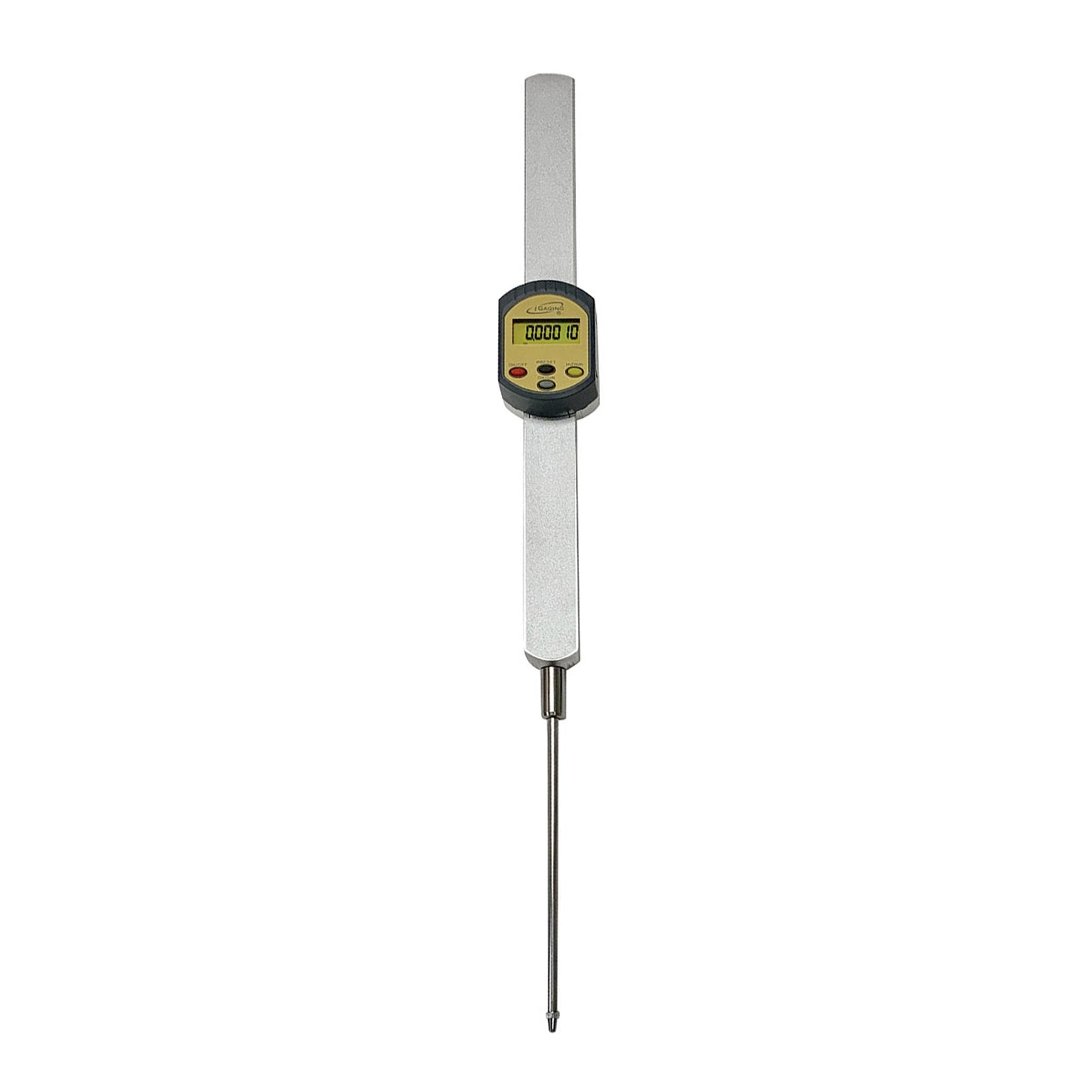

35-950-99	0 - 4" / 101.6 mm	0.00005" / 0.001 mm	0.0003" / 0.01 mm	0.0001" / 0.002 mm
35-955-99	0 - 4" / 101.6 mm	0.0005" / 0.01 mm	0.001" / 0.02 mm	0.0005" / 0.01 mm
