iP54 EZ-View Router Lift DRO

Set up the Bit Height Precisely on Your Router Table

• EZ View: Ultra large LCD display with backlit
• EZ Preset / Calibration / Absolute Function
• EZ Installation: Requires drilling two small taps in your lift using the drill bit & tap supplied or mounting with very high bond (VHB) tape

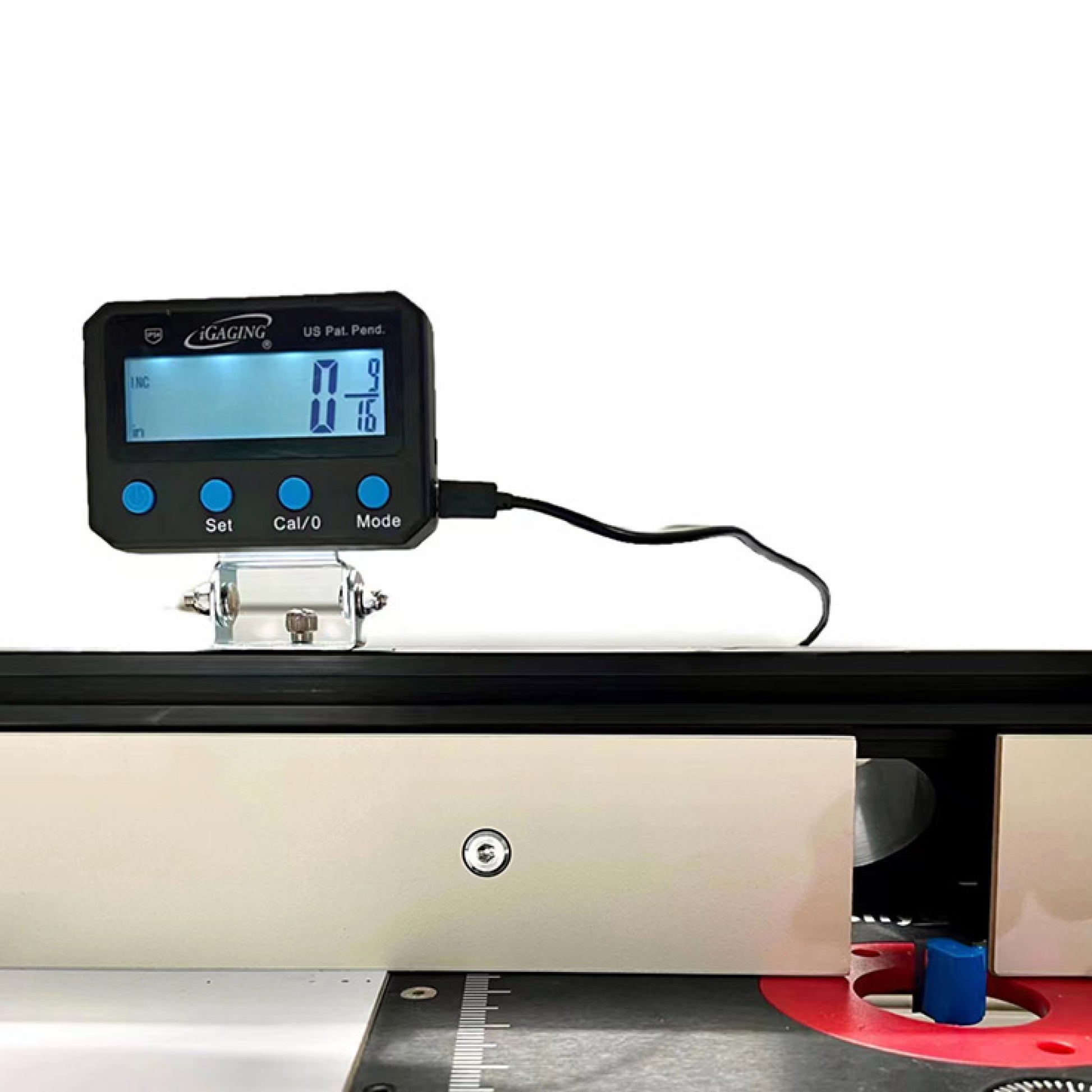

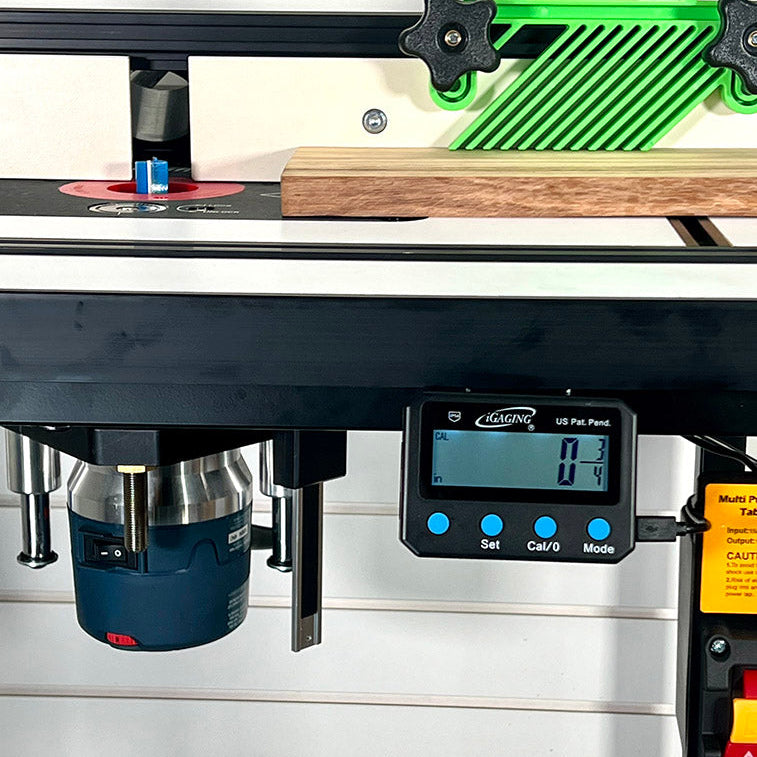

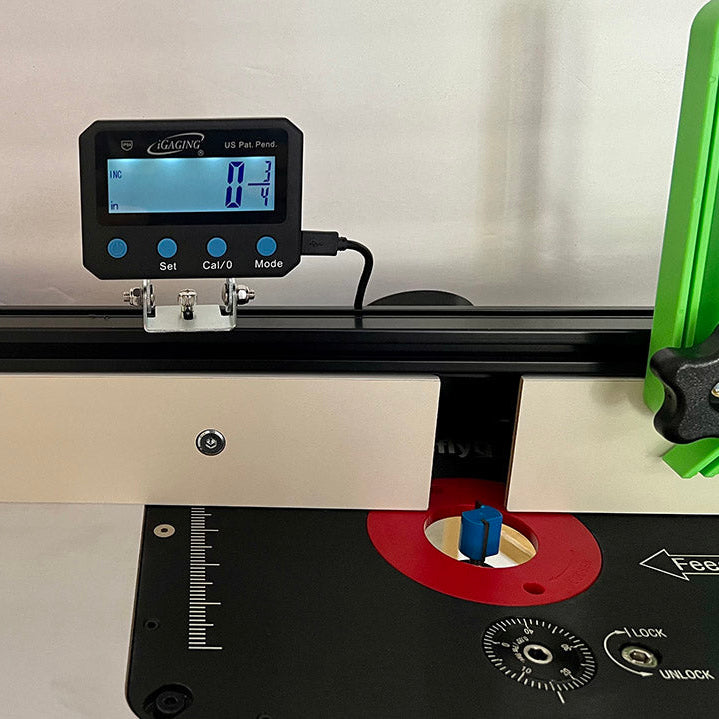

• EZ Display: Mounts easily to a 1/4" T-track on the router tabletop or fence or can be mounted under the router tabletop and angled outward
• EZ Power: Long-lasting 3V CR2450 battery or by an 75" data cable, 80" Micro USB cable and AC adapter (included)
• Fits most common brand router lifts
• iP54 protective rating: Moisture and dust resistance
• Measuring range: 0 - 4"/100 mm
• Resolution: 0.0005"/0.01 mm/32nd
• Accuracy: +/- 0.001"
• On/Off button
• ABS function
• Aluminum beam

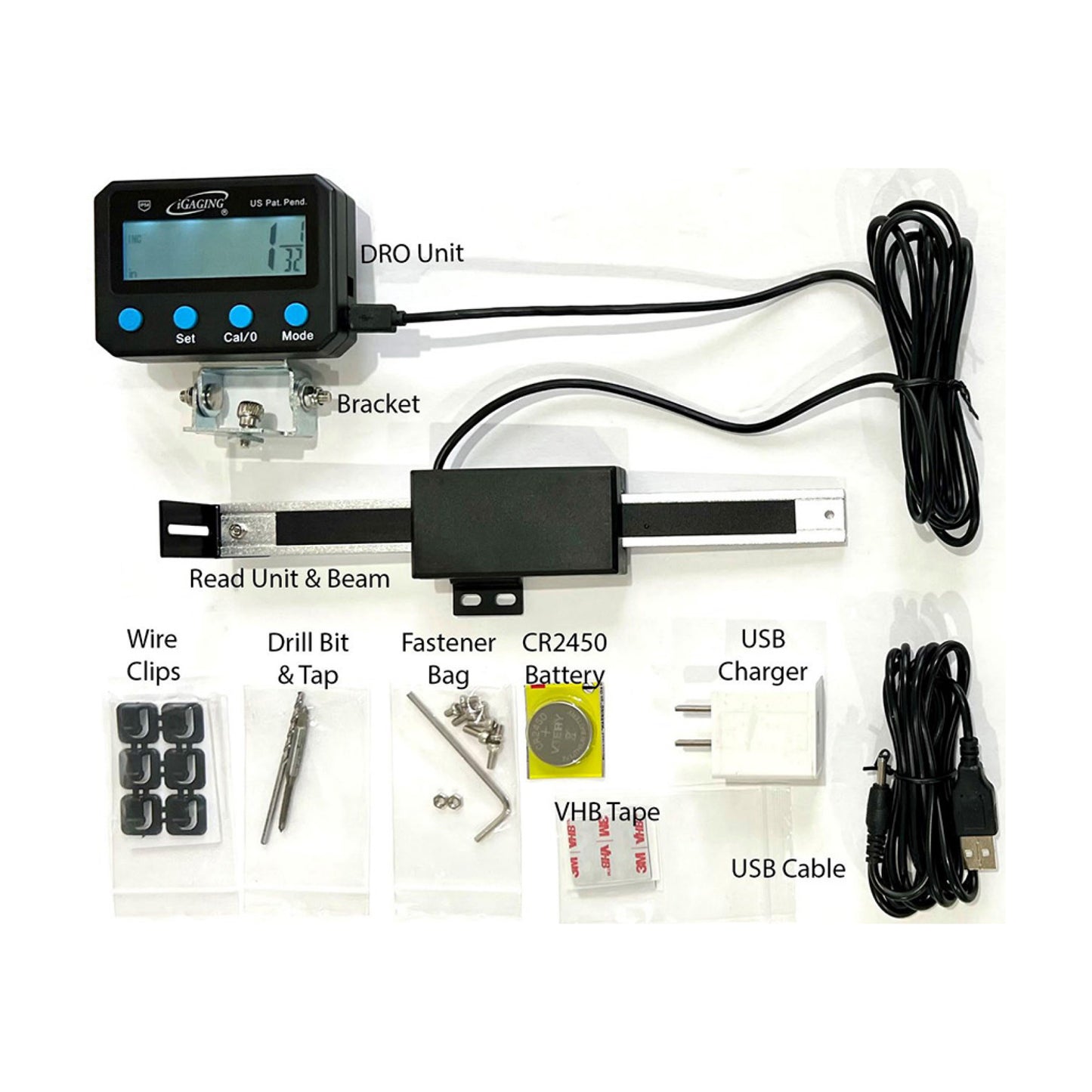

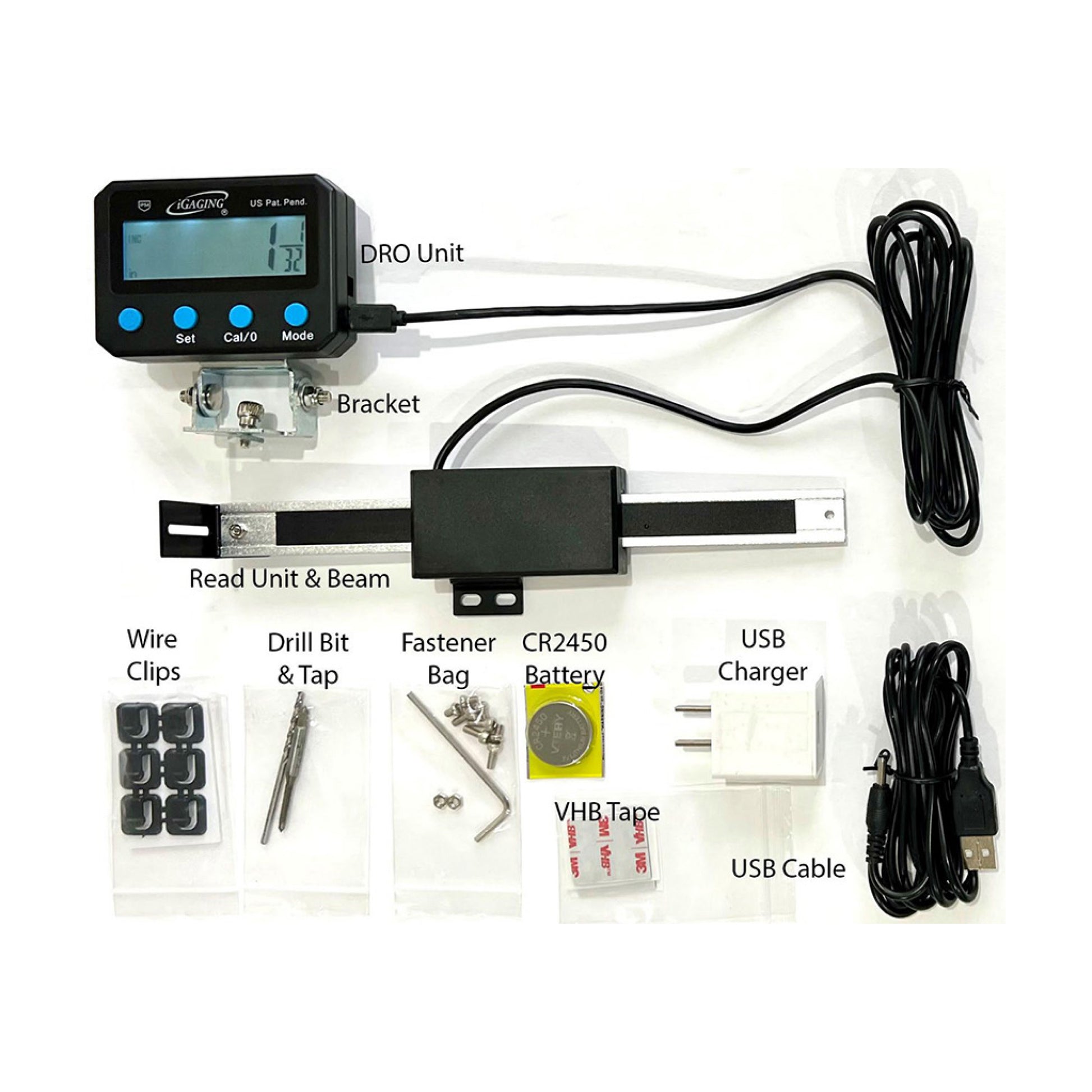

• Mounting brackets included

Product Instructions

Download the product instruction manual here:
[Download PDF]
