Digital Depth Gauges — DigiDepth, Absolute Origin & 4″ Snap

Select the model below. Measuring ranges, resolution and included accessories vary by model.

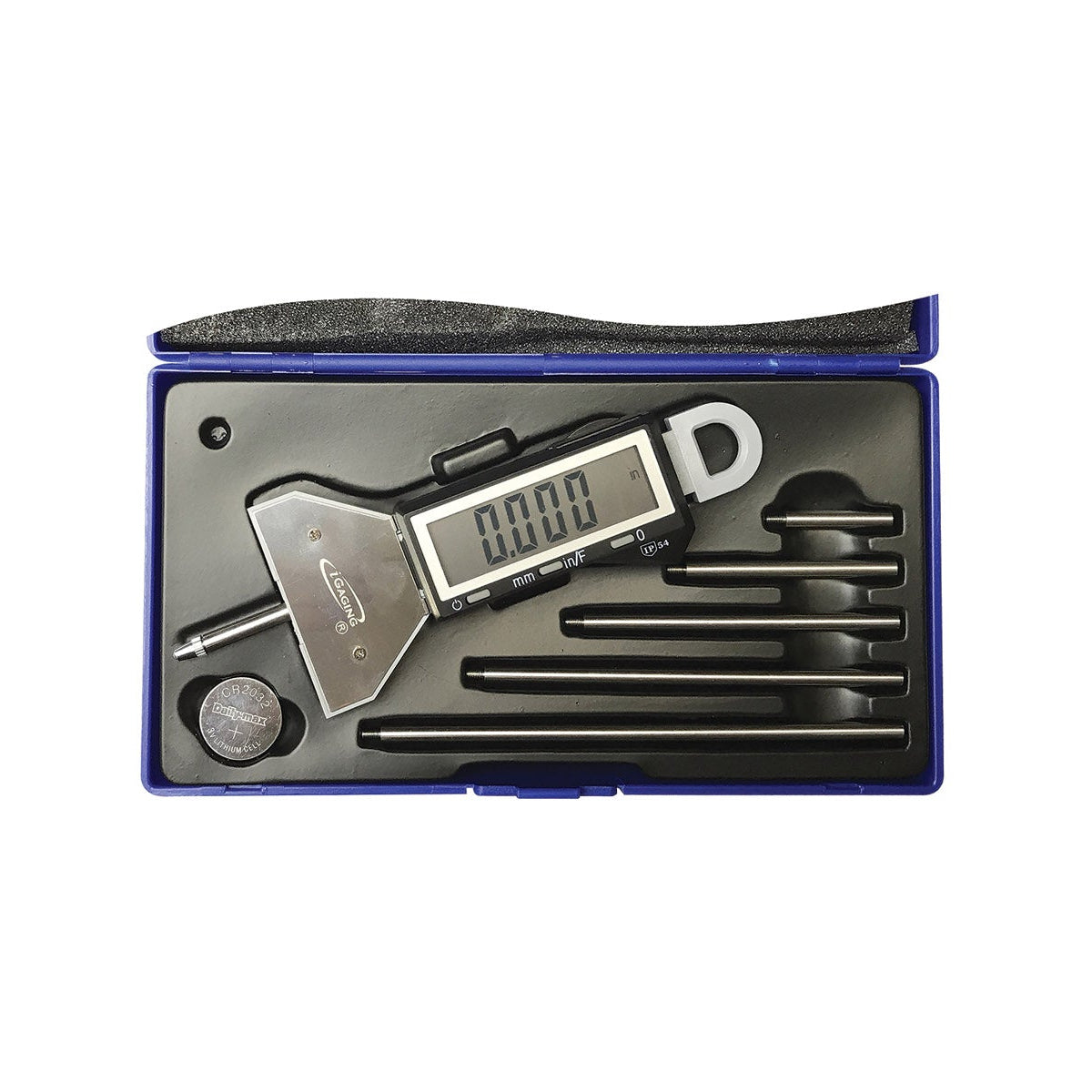

35-0917 — DigiDepth Gauge

• Measuring range: 0–6″ / 150 mm
• Measuring range with extensions: up to 16″ / 400 mm
• Accuracy: 0 - 1"/0.001"
• Resolution: 0.0005″ / 0.01 mm; fractional reading: 1/64″
• Large LCD display

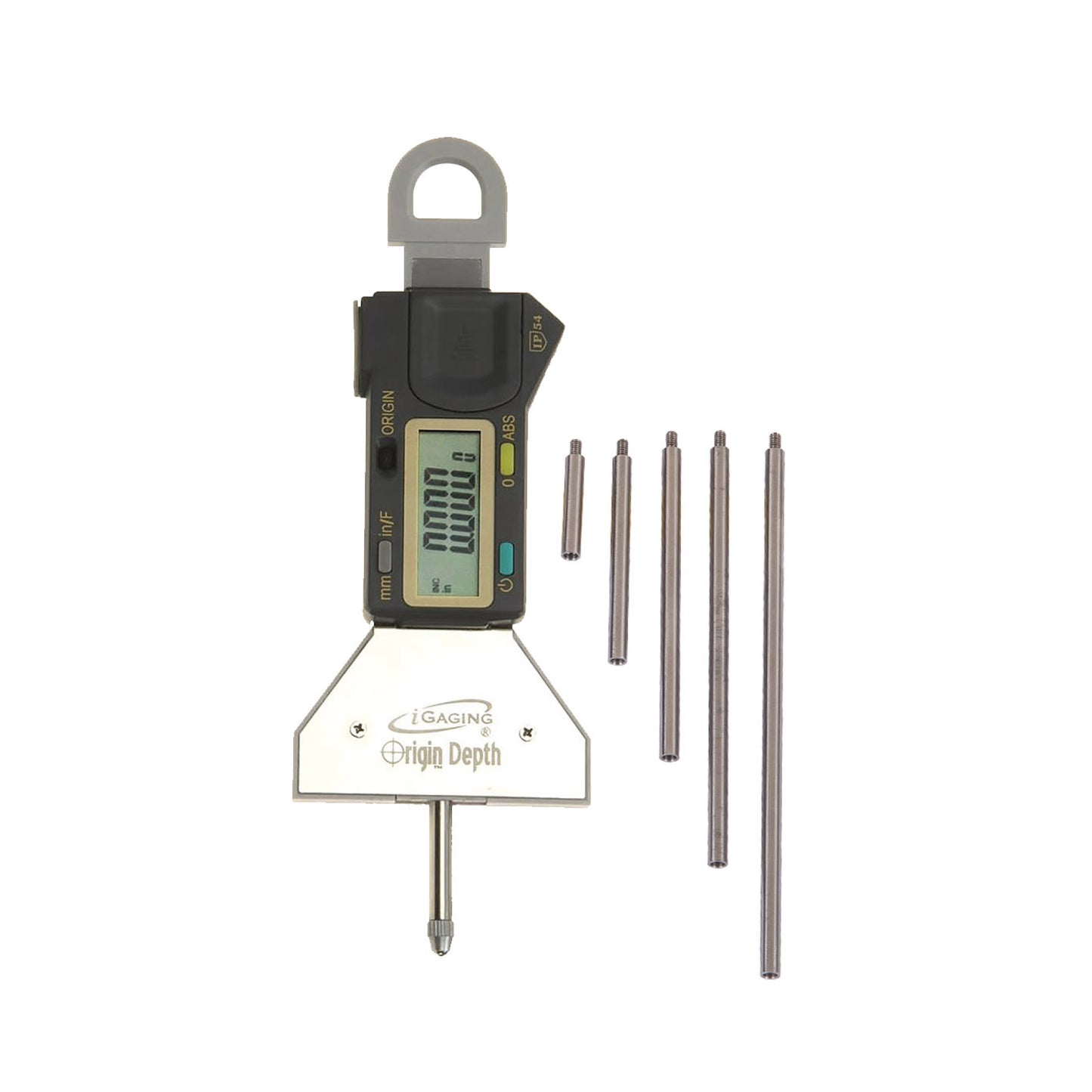

35-0918 — Absolute Origin Depth Gauge

• Measuring range: 0–6″ / 150 mm
• Measuring range with extensions: up to 16″ / 400 mm
• Accuracy: 0 - 1"/0.001"
• Absolute encoding technology memorizes absolute origin zero
• Resolution: 0.0005″ / 0.01 mm; fractional reading: 1/128″
• Easy-to-read LCD display
• SPC/USB data output

Features for 35-0917 and 35-0918

• IP54 protection against moisture and dust
• Interchangeable rods with #4-48 thread
• 1″, 2″, 3″, 4″ and 5″ extensions included
• Integrated lug back
• Base: 2″ long × 1/4″ wide
• Automatic shut-off after 5 minutes
• 3V CR2032 battery included
• Supplied in a protective case

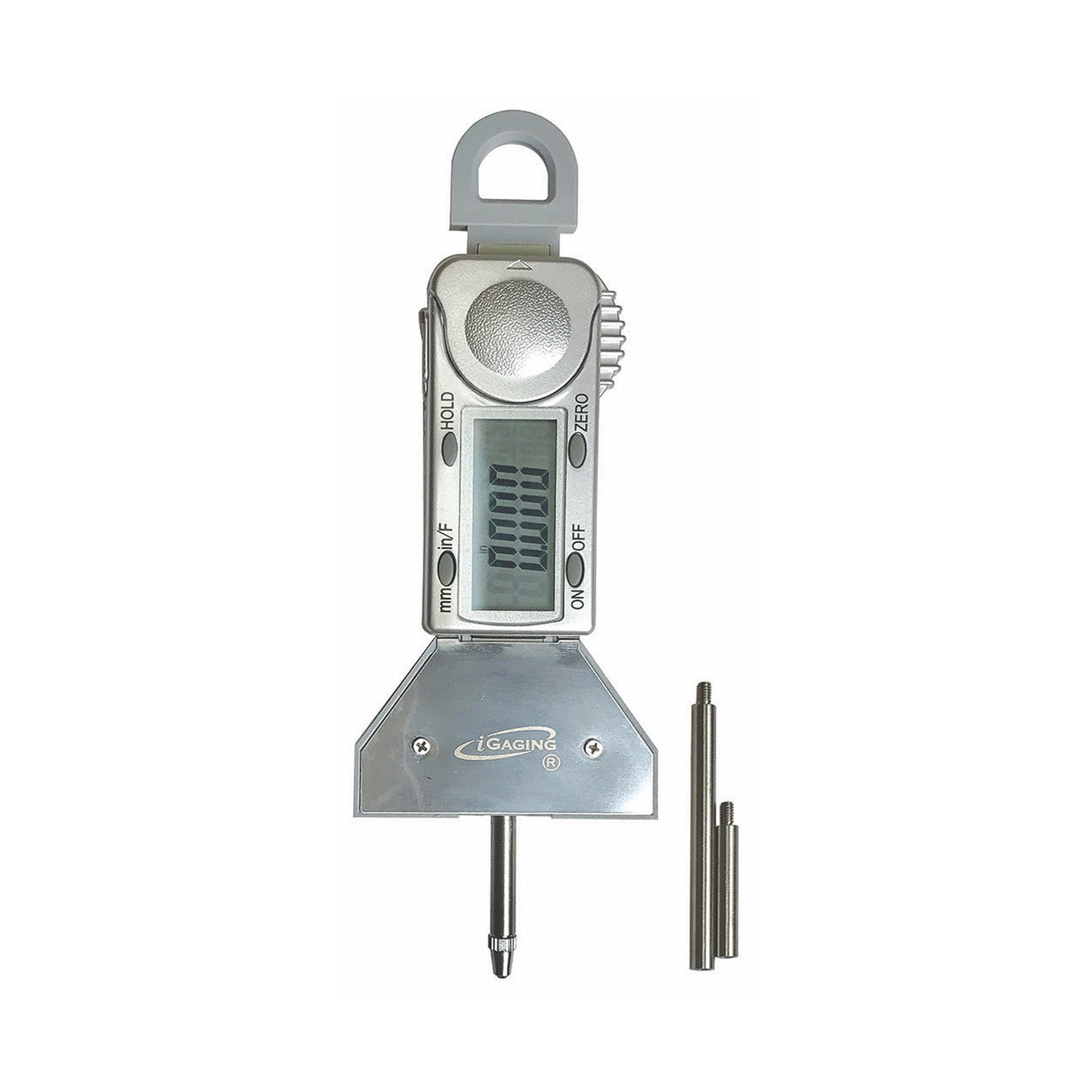

35-0904 — Digital Snap Depth Gauge

• Measuring range: 0–4″
• Separate snap depth gauge model

Model Comparison

Optional Accessory for 35-0918

100-700-USB — SPC/USB Cable Data Kit is sold separately for 35-0918 only.
