iGAGING

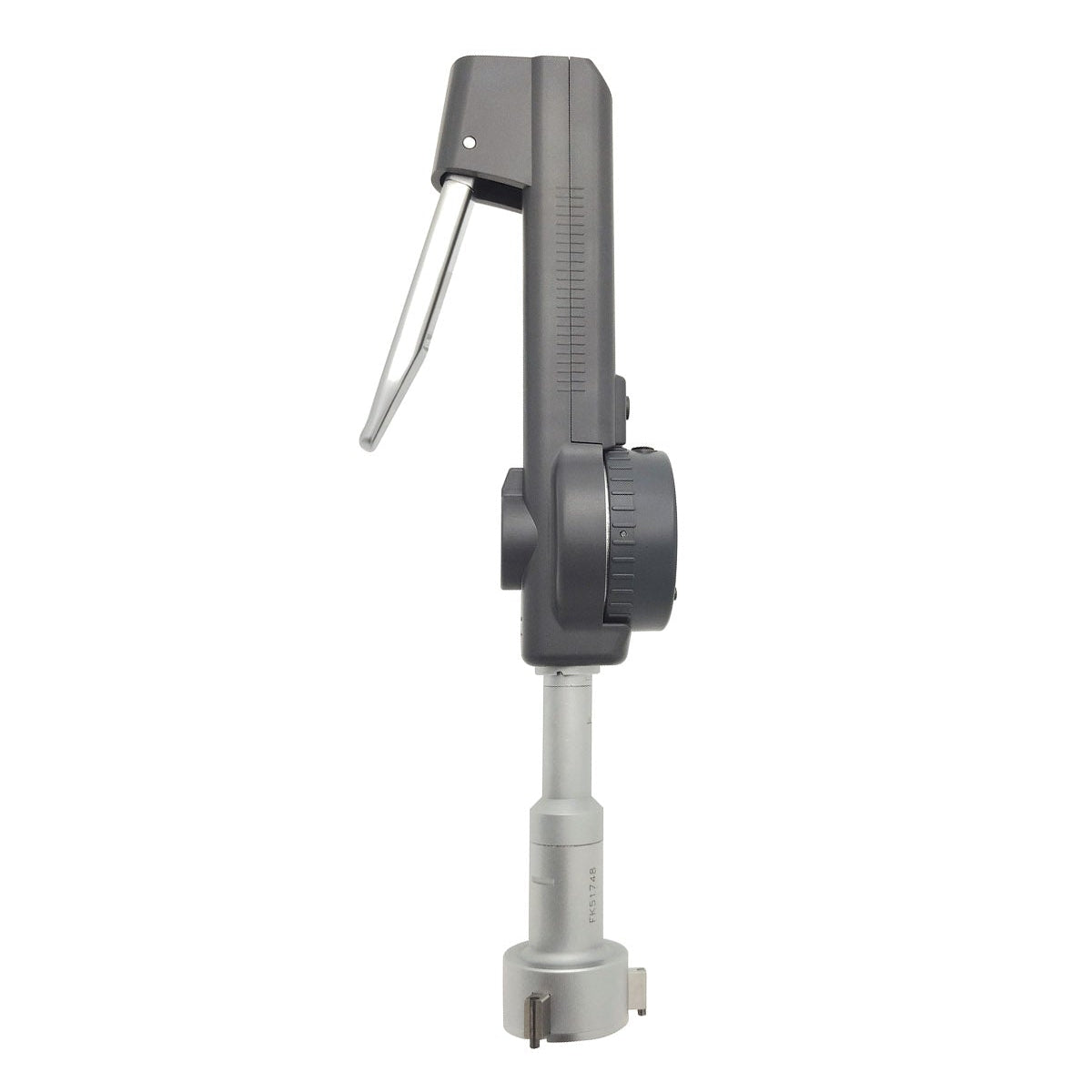

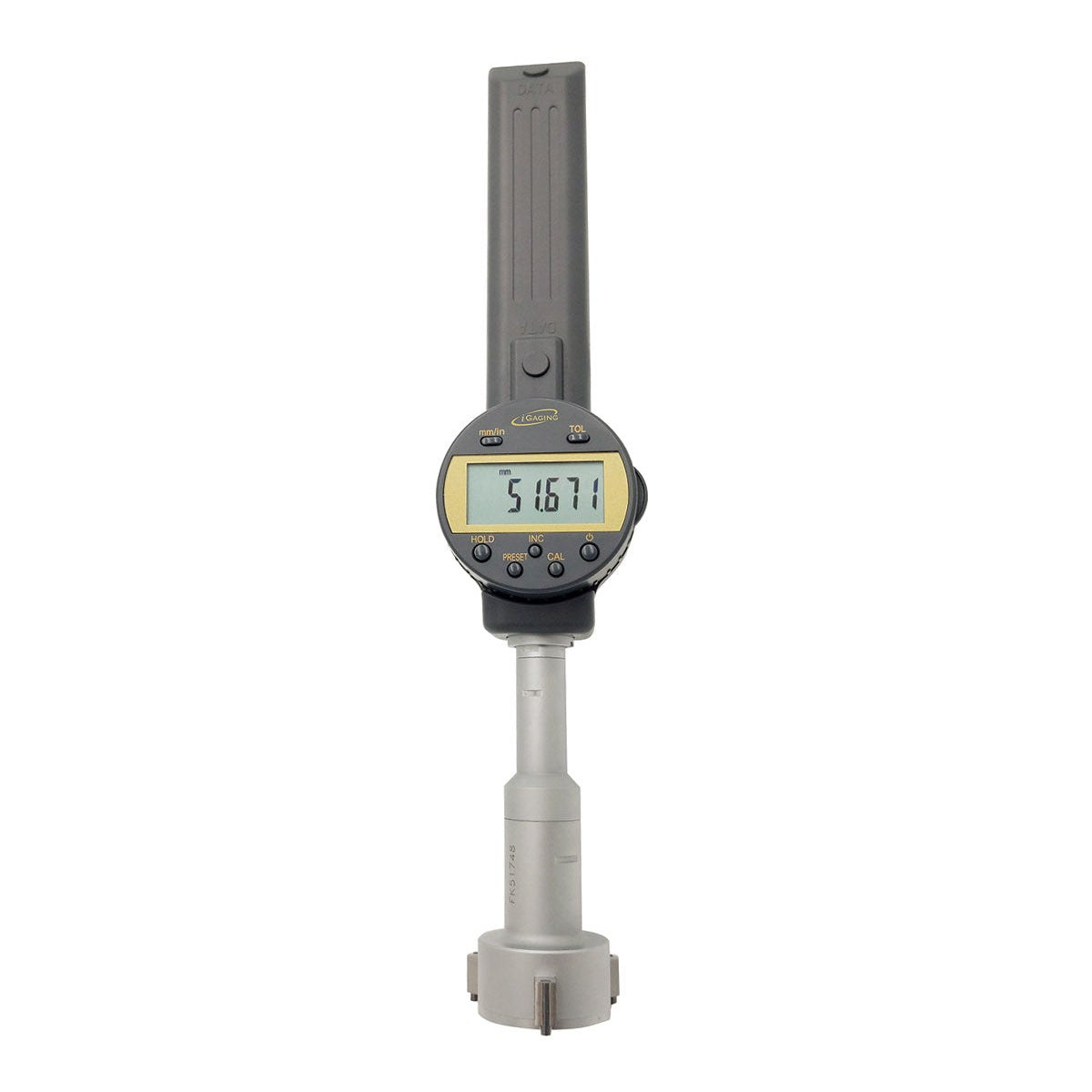

iP54 Absolute Tri-Point Digital Internal Bore Gauges with Hand Grip for Smooth Handling
iP54 Absolute Tri-Point Digital Internal Bore Gauges with Hand Grip for Smooth Handling
Regular price
$729.99 USD
Regular price
Sale price
$729.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
• iP54 protective rating: Moisture and dust resistance
• Absolute encoding technology Memorize absolute origin zero
• 330° display rotation
• Large LCD display
• Inch/Metric conversion
• Reading: 0.00005"
• Contact points are designed to allow measurements near the bottom of blind holes
• Carbide Measuring surfaces
• SPC/USB data output
• Setting ring and wrench included
• 4" & 6" Extesion rods available.
• Battery: 3V CR2032 included
• Supplied in protective case
Specifications
| Item # | Range | Accuracy | Setting Ring |
|---|---|---|---|
| 35-DB-100 | 0.8 - 1.0" / 20 - 25 mm | 0.00015" / 0.004 mm | 0.9843" |
| 35-DB-120 | 1.0 - 1.2" / 25 - 30 mm | 0.00015" / 0.004 mm | 0.9843" |
| 35-DB-160 | 1.2 - 1.6" / 30 - 40 mm | 0.00015" / 0.004 mm | 1.5748" |
| 35-DB-200 | 1.6 - 2.0" / 40 - 50 mm | 0.0002" / 0.005 mm | 1.5748" |
| 35-DB-250 | 2.0 - 2.5" / 50 - 63 mm | 0.0002" / 0.005 mm | 2.4409" |
| 35-DB-300 | 2.5 - 3.0" / 62 - 75 mm | 0.0002" / 0.005 mm | 2.4409" |
| 35-DB-350 | 3.0 - 3.5" / 75 - 88 mm | 0.0002" / 0.005 mm | 3.4252" |
| 35-DB-400 | 3.5 - 4.0" / 87 - 100 mm | 0.0002" / 0.005 mm | 3.4252" |
| 35-700-USB | SPC / USB Cable Data Kit | ||
| 35-WL-CAD | Wireless Data Output Kit | ||
| 35-BT-28 | Smart Wireless Data Output Kit | ||
