iGAGING

iP54 Absolute Origin Digital Indicators with or without Smart Wireless Data Output

iP54 Absolute Origin Digital Indicators with or without Smart Wireless Data Output

$184.99 USD
$184.99 USD
Sale Sold out
Shipping calculated at checkout.
Options

• iP54 protective rating: Moisture and dust resistance
• Absolute encoding technology
 Memorize absolute origin zero
• Ultra-Response measure speed
• Inch/Metric conversion
• High contract LCD display
• 330° display rotation.
• Preset and tolerance function
• Stem dia.: 3/8"
• Thread size: #4-48
• Ceramic contact point
• Attachable finger lever included(except for 0 - 0.5" sizes)
• Lug and flat back included
• SPC/USB data output
• Battery: 3V CR2032 included
• Supplied in protective case
• Smart Wireless Data Output connects to Bluetooth device





Product Instructions

Download the instruction manual here:
[Download PDF]



Standard Models

Item # Range Resolution Accuracy Repeatability

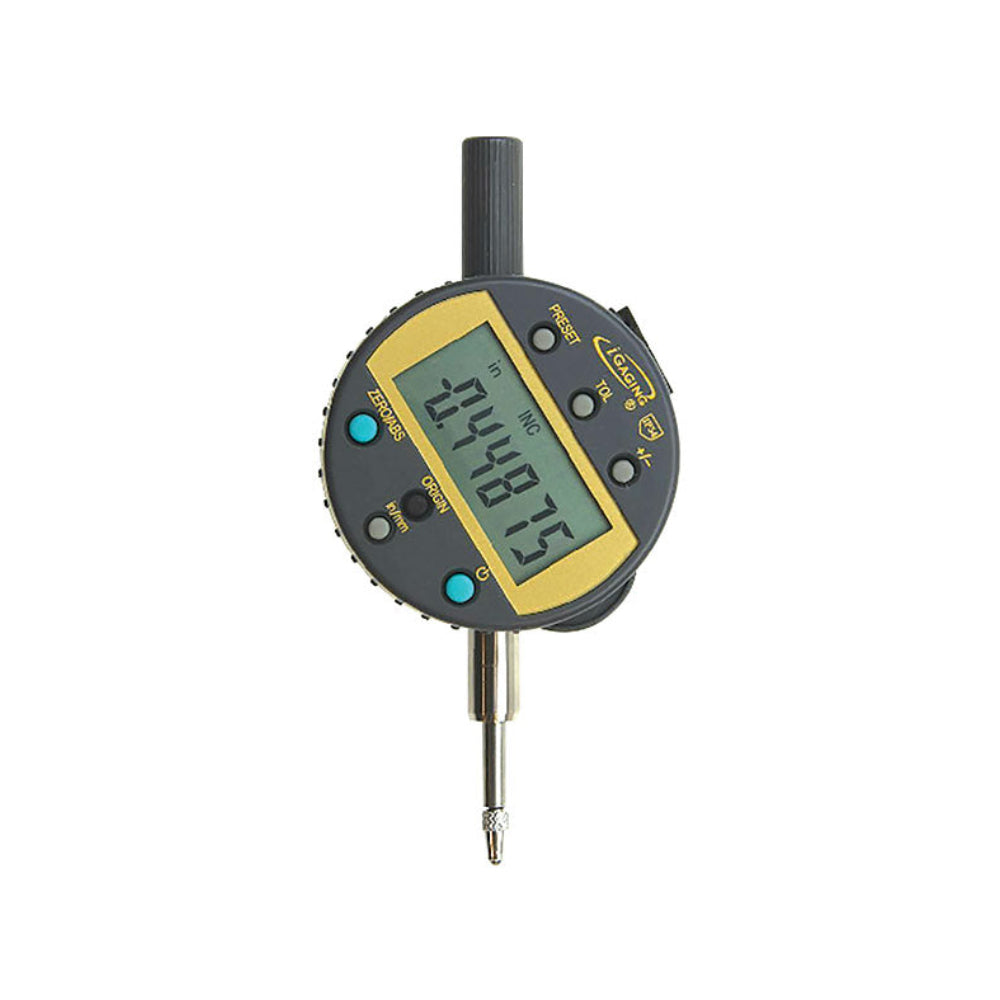

35-700-10 0 - 0.5" / 12.7 mm 0.00005" / 0.001 mm 0.00016" / 0.004 mm 0.00005" / 0.001 mm
35-705-10 0 - 0.5" / 12.7 mm 0.0005" / 0.01 mm 0.0005" / 0.01 mm 0.0005" / 0.01 mm

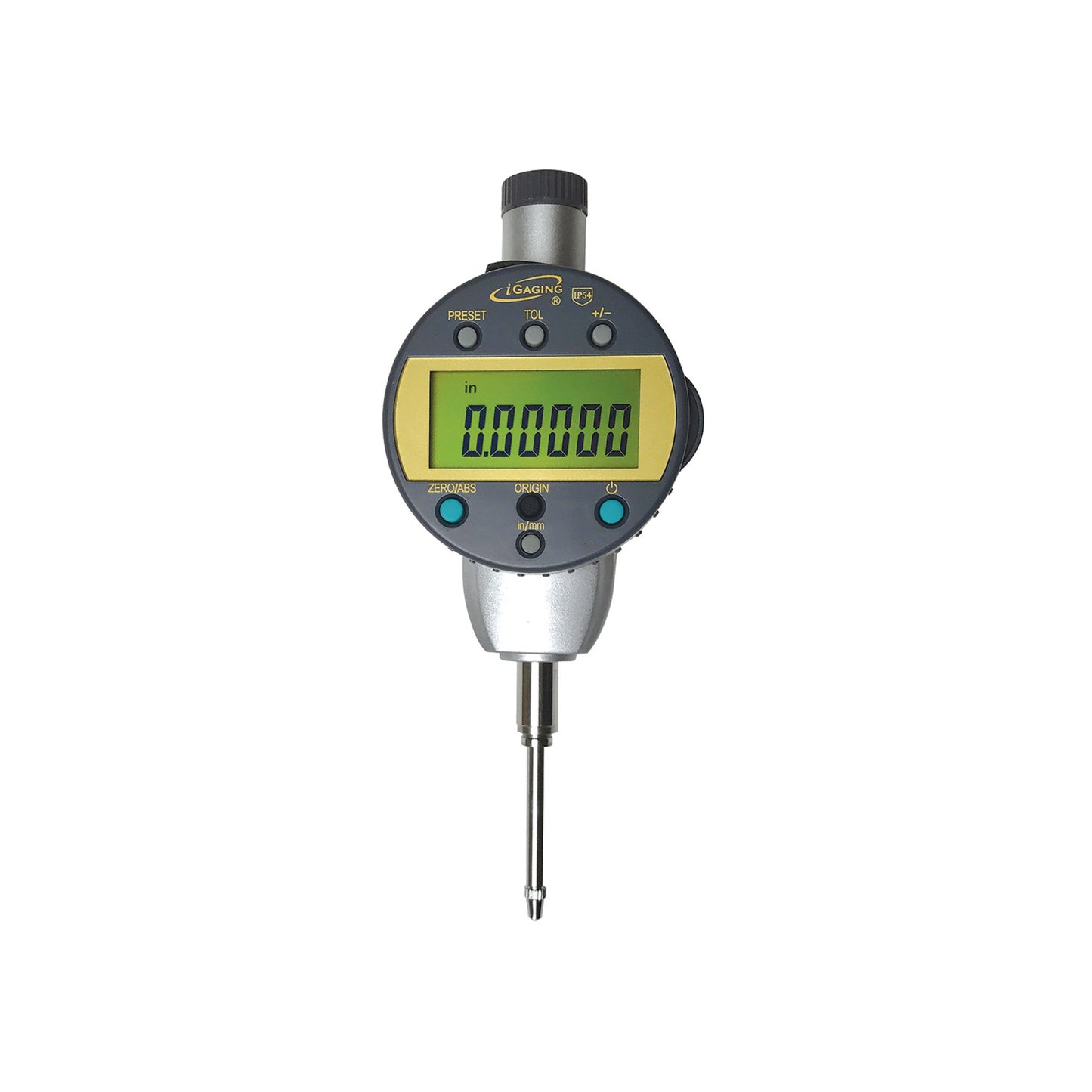

35-700-25 0 - 1" / 25.4 mm 0.00005" / 0.001 mm 0.00016" / 0.004 mm 0.00005" / 0.001 mm
35-705-25 0 - 1" / 25.4 mm 0.0005" / 0.01 mm 0.0005" / 0.01 mm 0.0005" / 0.01 mm

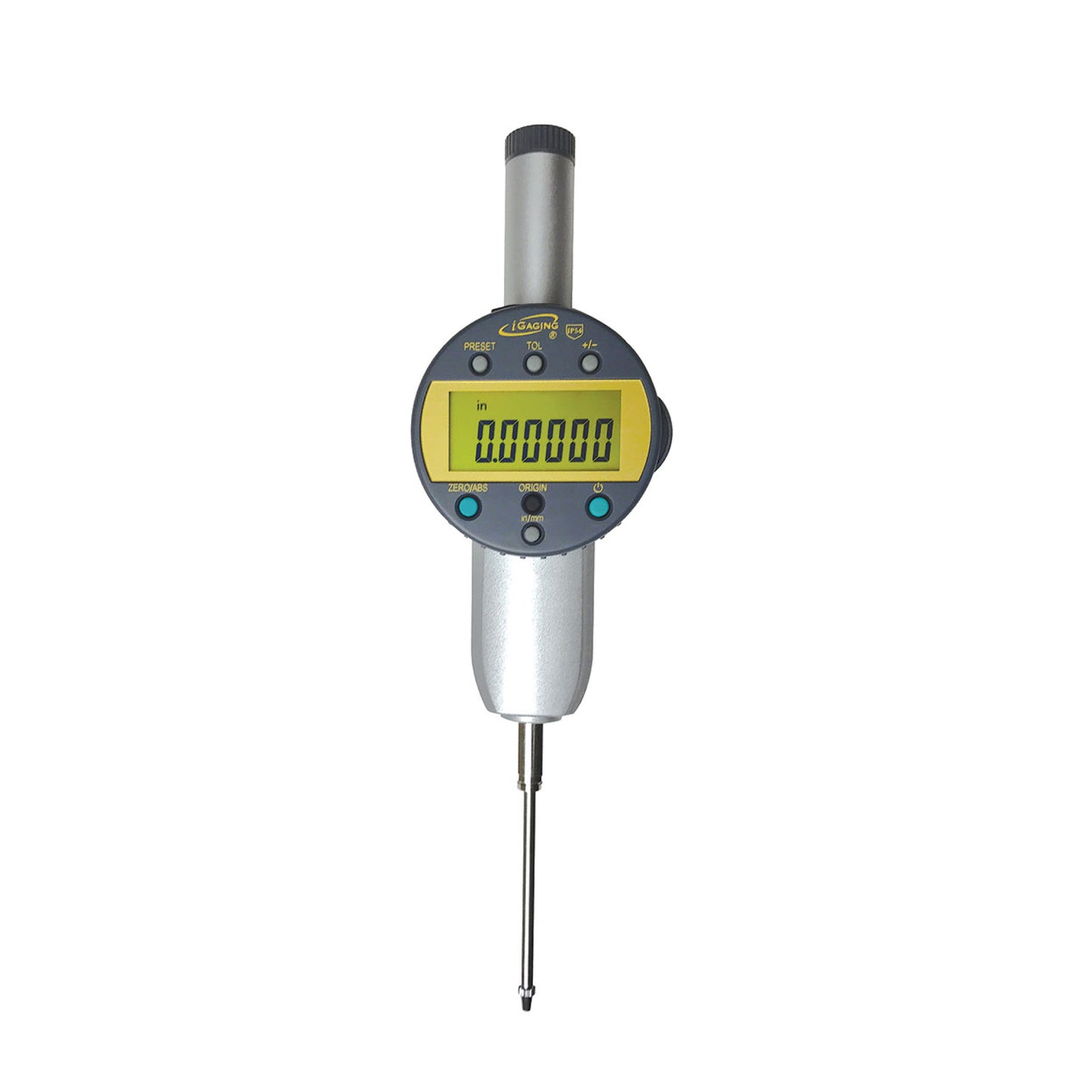

35-700-50 0 - 2" / 50.8 mm 0.00005" / 0.001 mm 0.0002" / 0.005 mm 0.00005" / 0.001 mm

Smart Wireless Data Output

Item # Range Resolution Accuracy Repeatability

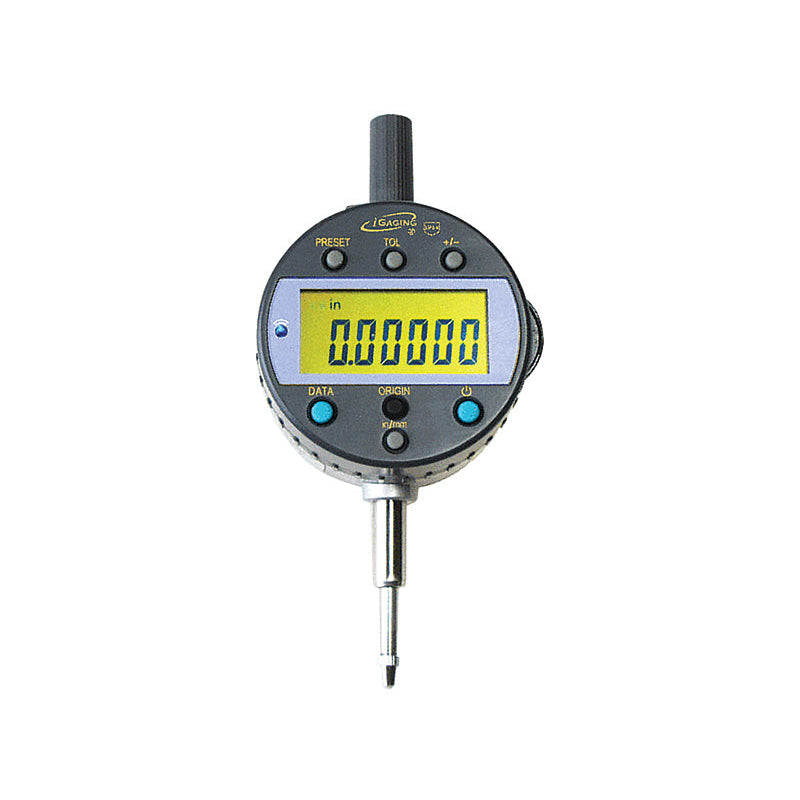

35-700-B10 0 - 0.5" / 12.7 mm 0.00005" / 0.001 mm 0.00016" / 0.004 mm 0.00005" / 0.001 mm
35-705-B10 0 - 0.5" / 12.7 mm 0.0005" / 0.01 mm 0.0005" / 0.01 mm 0.0005" / 0.01 mm
35-700-B25 0 - 1" / 25.4 mm 0.00005" / 0.001 mm 0.00016" / 0.004 mm 0.00005" / 0.001 mm
35-705-B25 0 - 1" / 25.4 mm 0.0005" / 0.01 mm 0.0005" / 0.01 mm 0.0005" / 0.01 mm
35-700-B50 0 - 2" / 50.8 mm 0.00005" / 0.001 mm 0.0002" / 0.005 mm 0.00005" / 0.001 mm
35-705-B50 0 - 2" / 50.8 mm 0.0005" / 0.01 mm 0.001" / 0.015 mm 0.0005" / 0.01 mm
