iGAGING

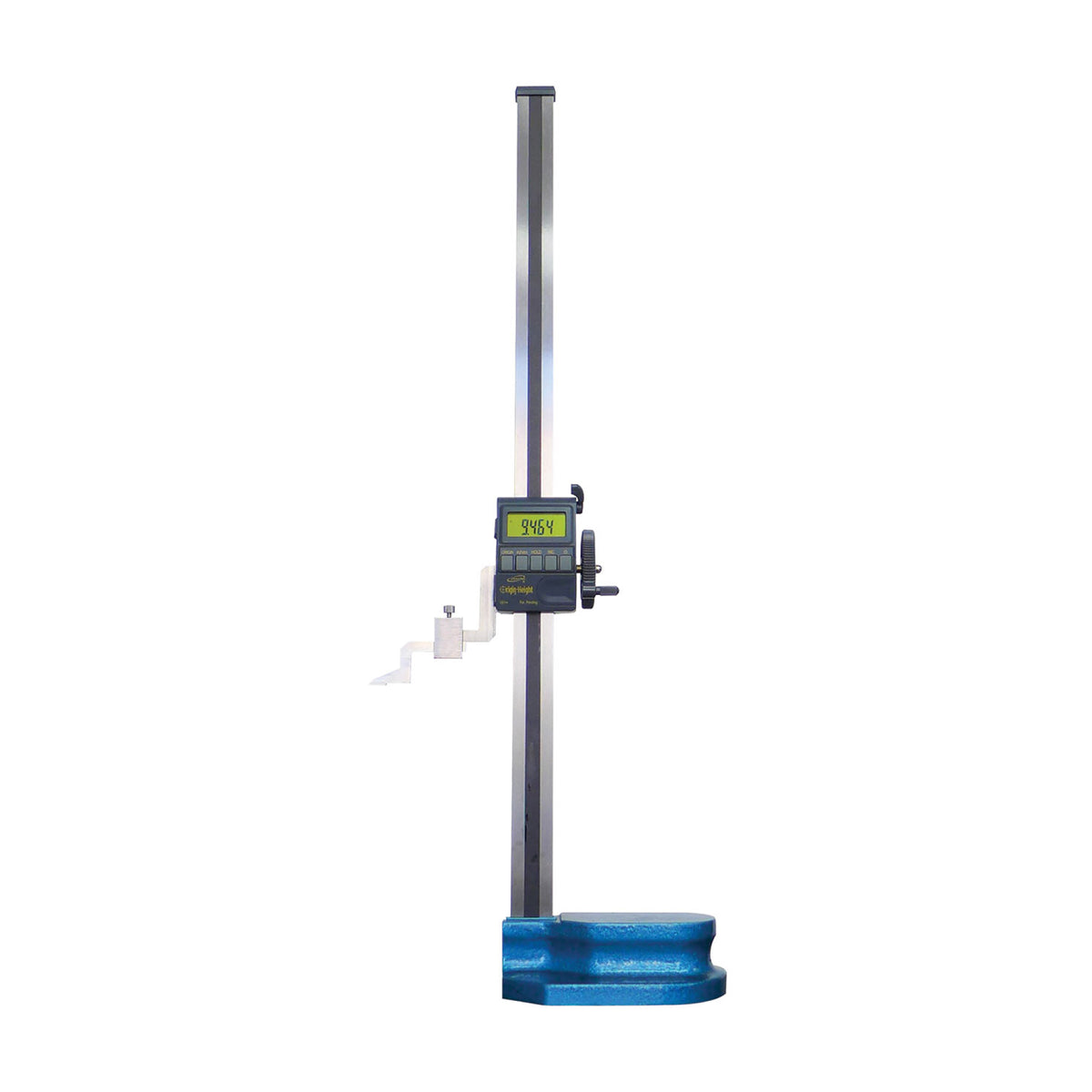

iP54 Absolute Origin Digital Height Gauges

$421.99 USD

Sale Sold out

Shipping calculated at checkout.

Range 12"/300mm 18"/450mm 24"/600mm

• iP54 protective rating: Moisture and dust resistance
• Absolute encoding technology Memorize absolute origin zero
• Ultra-Response measure speed
• Zero setting at any position
• Large LCD display
• Inch/Metric conversion at any position
• Indicator bar for travel included
• Single stainless steel beam with smooth slider hand wheel for optimize movement
• Carbide tipped scriber
• Data cable to connect indicators to height gauge included
• SPC/USB data output
• Manual On/Off power
• Power: 3V CR2032 battery included/AC power
• Supplied in protective case

Specifications

Item #	Range	Accuracy
35-700-H12	0-12"/300mm	0.001"/0.03mm
35-700-H18	0-18"/450mm	-
35-700-H24	0-24"/600mm	0.002"/0.05mm
100-700-USB	SPC/USD Cable Data Kit
35-WL-CAD	Wireless Dongle Data Kit (Dongle to Flash Drive)
35-BT-28	BT Wireless Dongle Data kit (Dongle to Device)

+Ultra Accurate Solutions

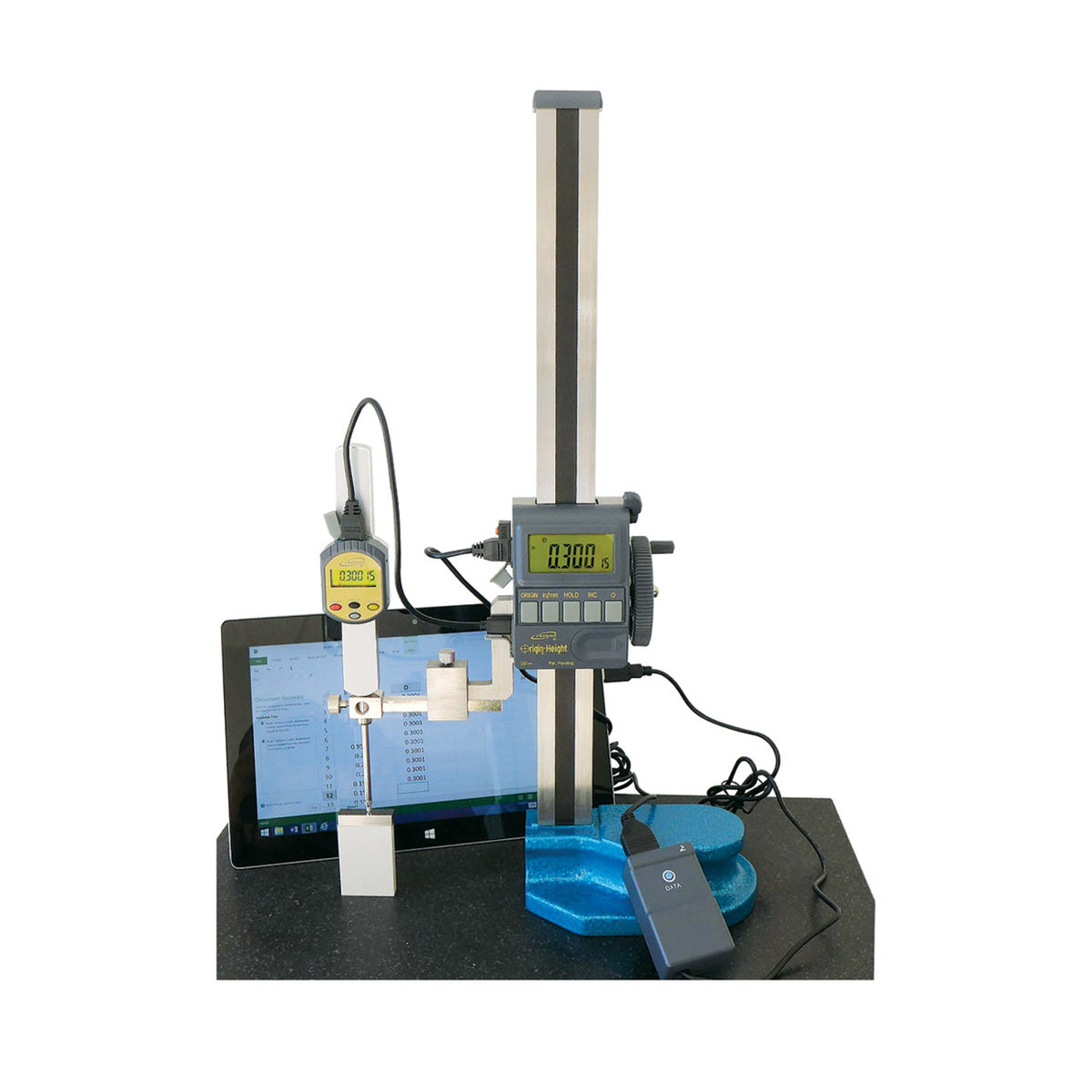

• By connection to the available iGAGING Micron absolute indicator or indicator probes, the height gauge will be able to measure and read objects in micron level.

• For additional information, please check:
— iGAGING Absolute Indicators
— iGAGING Absolute Indicator Probe
