Gage Block Sets Inch & Metric

• Manufactured to meet NIST Federal Specification ASME B89.1.9 - 2002 tolerances on length for inch gage blocks.
• Certificate of Calibration traceable to NIST
• Tolerances to ± .00005"
• Supplied in protective case

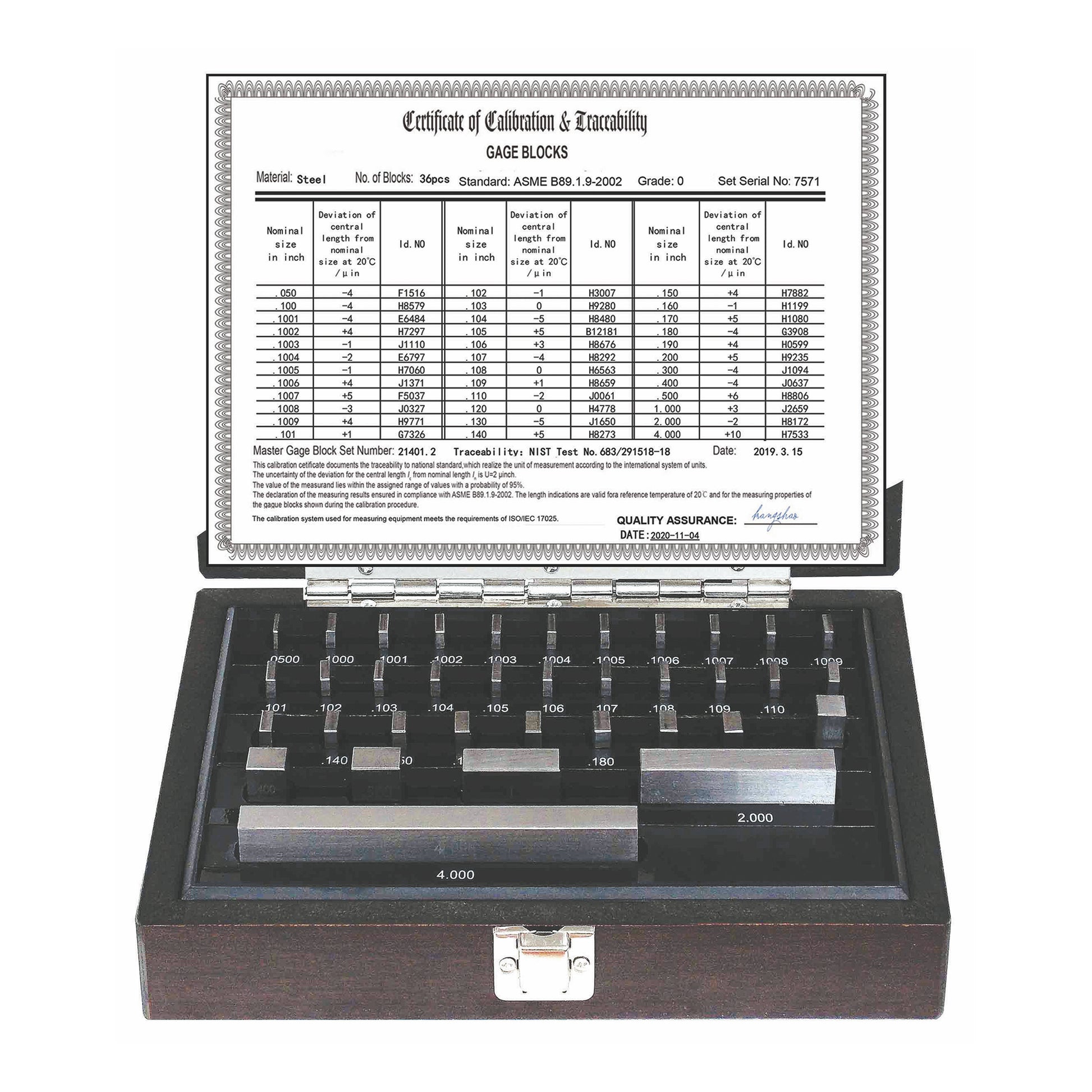

36 Pc. Gage Block Sets
1 Block: .050"
9 Blocks: .1001" - .1009" in .0001" steps
9 Blocks: .101" - .109" in .001" steps
9 Blocks: .110" - .190" in .010" steps
5 Blocks: .100" - .500" in .100" steps
3 Blocks: 1", 2", 3"

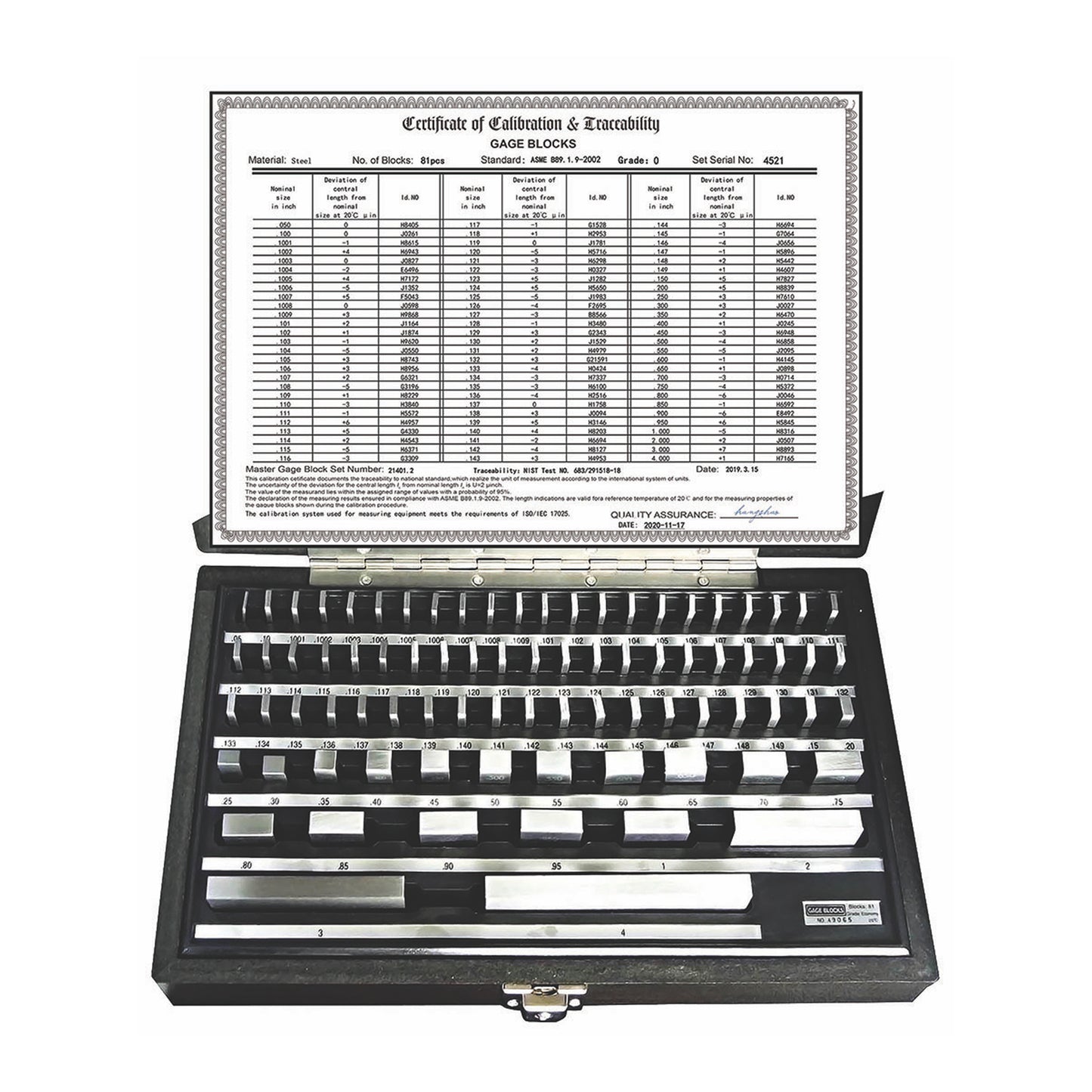

81 Pc. Gage Block Sets
9 Blocks: .1001" - .1009" in .0001" steps
49 Blocks: .101" - .149" in .001" steps
19 Blocks: .050" - .950" in .050" steps
4 Blocks: 1.000" - 4.000" in 1.000" steps

47 Pc. Metric Gage Block Sets - Grade 0
1 Block: 1.005 mm
9 Blocks: 20 - 100 mm in 10 mm steps
10 Blocks: 1 - 10mm in 1 mm steps
8 Blocks: 1.2 - 1.9 mm in .1 mm steps
19 Blocks: 1.01 - 1.19 mm in .01 mm steps

87 Pc. Metric Gage Block Sets - Grade 0
2 Block: 0.5 mm to 1.00 mm
9 Blocks: 1.001 - 1.009 mm in .001 mm steps
50 Blocks: 1.01 - 1.50 mm in .01 mm steps
17 Blocks: 2 - 10 mm in .5 mm steps
9 Blocks: 20 - 100 mm in 10 mm steps
