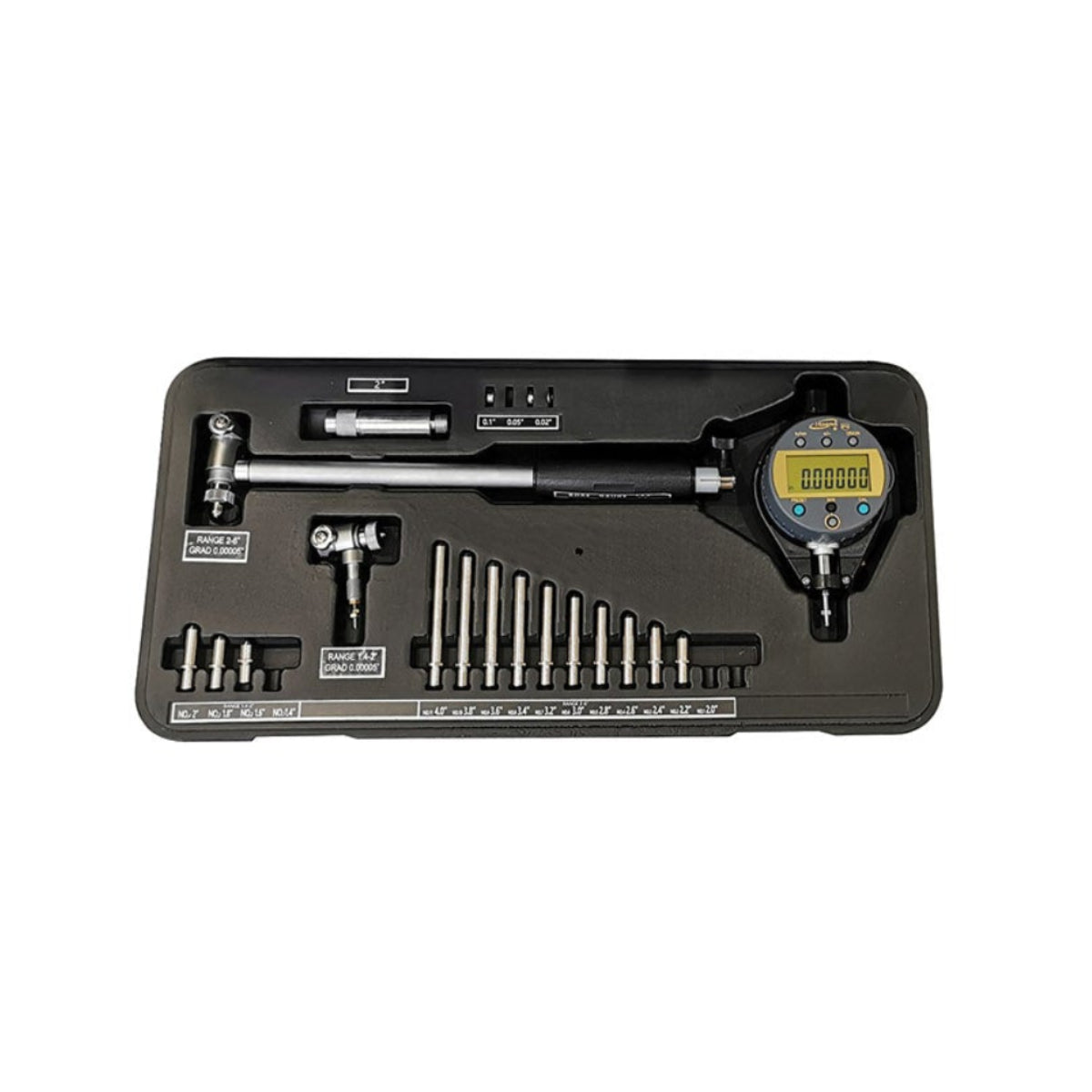

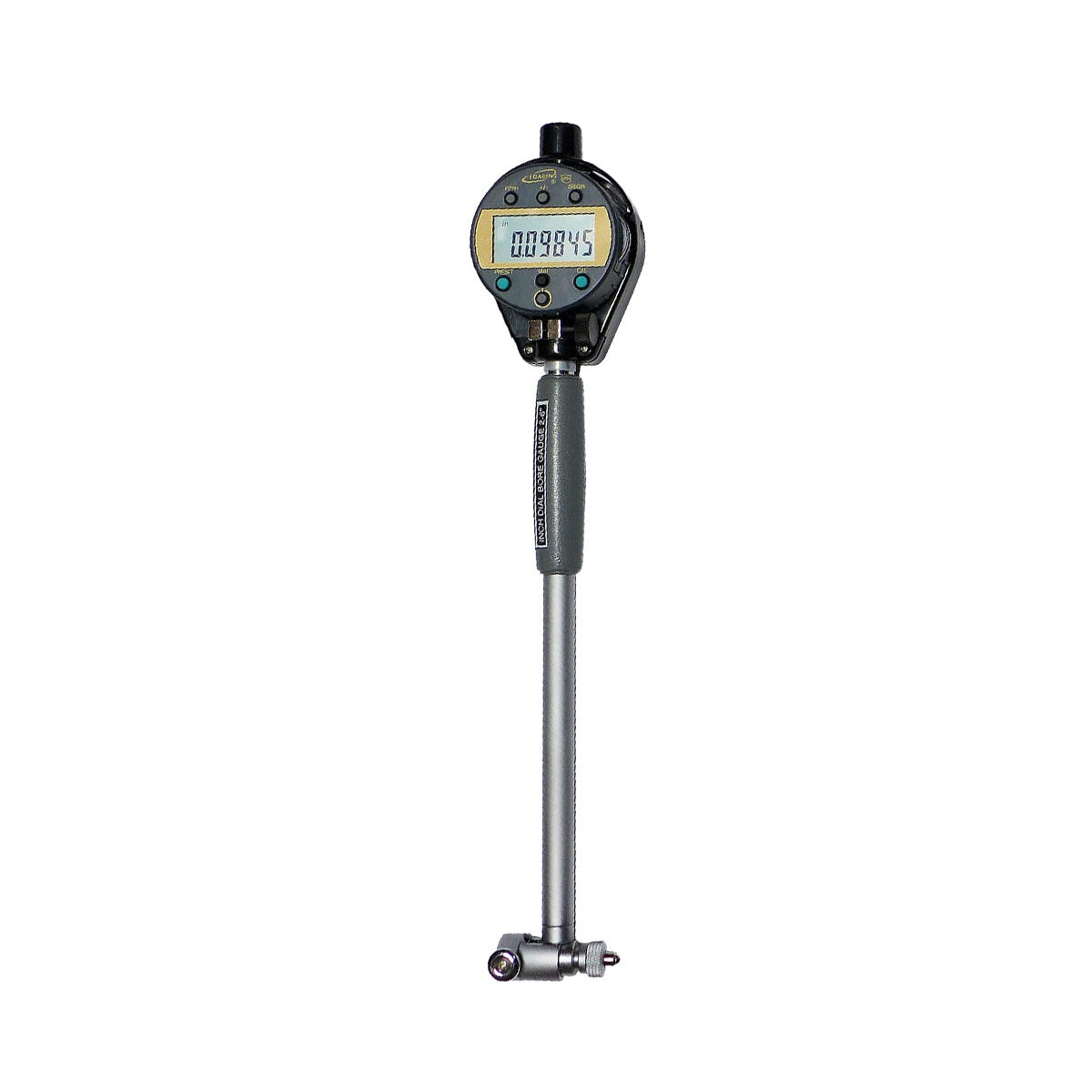

Extended Digital Internal Bore Gauge Sets

1.4 - 6" Measuring Range

• Close tolerance inspection of bores for size, roundness, ovality and taper

Sets Include:
• 2 interchangeable measuring heads: 1.4" - 2" & 2" - 6"
• 2 sets of anvils with carbide points: 1.4, 1.6, 1.8, 2", 2.0, 2.2, 2.4, 2.8, 3.0, 3.2, 3.4, 3.6, 3.8, 4"
• 2" extender
• 3 spacers/washers: 0.02, 0.05, 0.1"
• Supplied in protective case

iP54 Absolute Electronic Indicator
• iP54 protective rating: Moisture and dust resistance
• Range: 0 - 0.25"/6.85 mm
• Resolution: 0.00005"/0.001 mm
• SPC/USB data output

Electronic Indicator
• Range: 0 - 0.25"/6.85 mm
• Resolution: 0.0001"/0.002 mm

Dial Indicator
• Range: 0 - 0.25"
• Resolution: 0.0005"
• Reading: 0-25-0
* Metric size available

Specifications
