iGAGING
Dial/Digital Indicator, Holder & Magnetic Base Sets
Dial/Digital Indicator, Holder & Magnetic Base Sets
Couldn't load pickup availability
with Fine Adjustment , Flex Arm Holder or Universal Arm
• Supplied in protective case
Dial Indicator (400-001)
• Range: 0 - 1" • Graduation: 0.001"
• Reading: 0 - 100 • Accuracy: 0.001"
Digital Indicator (35-128)
• Range: 0 - 1"
• Absolute and incremental reading
• Resolution: 0.0005"/0.01 mm/ 1/128"
• Accuracy: ±0.001"/0.03 mm
• Easy to read LCD display
• Auto shut-off
• Battery: 3V CR2032 included
Magnetic Base
• V-Groove base allows mounting
on cylindrical surfaces
• On/Off switch
• Magnetic pull: 125 lbs.
• Base size: 2 1/2" L x 2" W x 2 1/8" H
Flex Arm Set
• 12" flex arm rotates 360°
• Indicator mount with 1/2" max. capacity
• Accepts all AGD indicators
• Cam lever locks arm in any position
| Item # | Description |

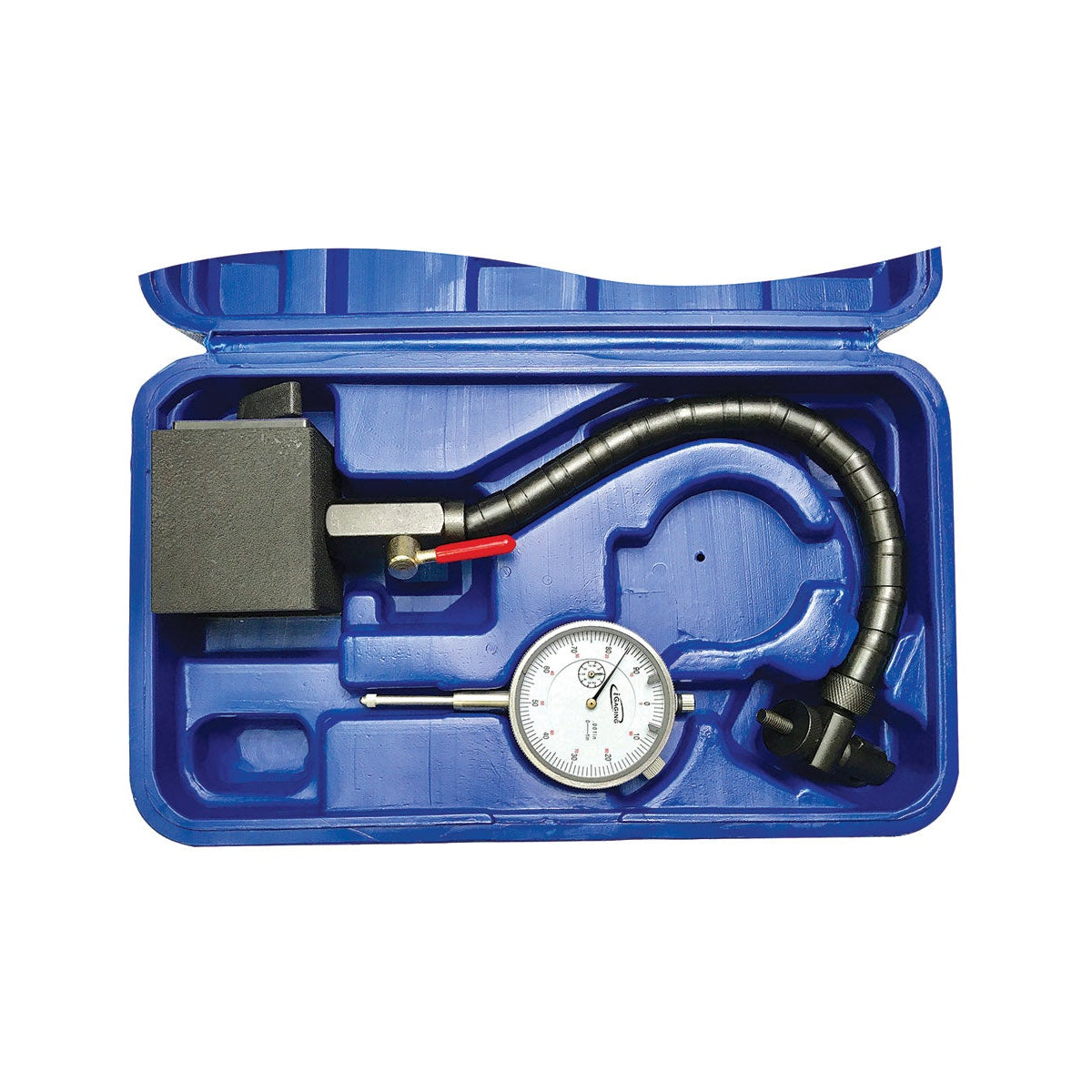

| 34-102 | with Dial Indicator (400-001) |

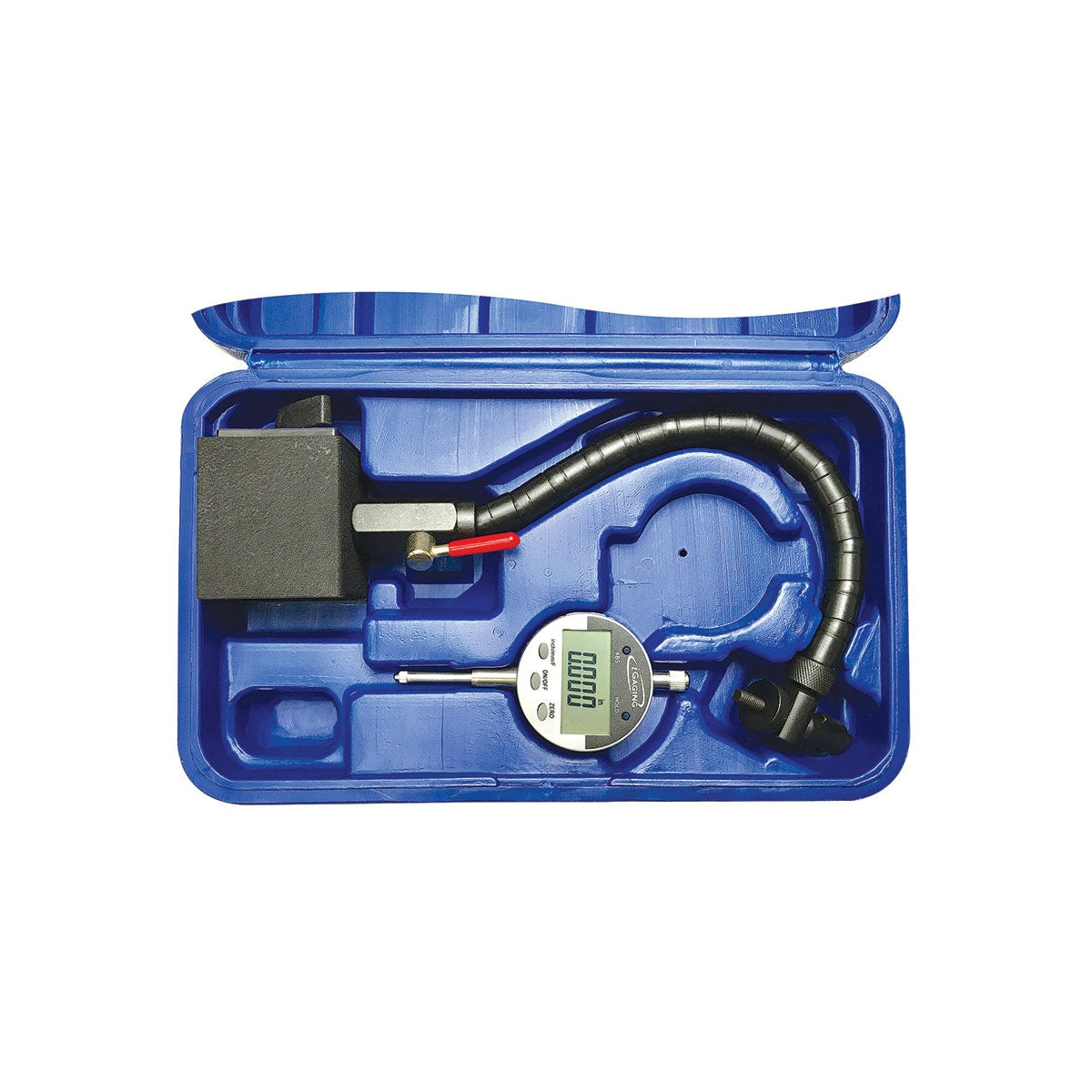

| 35-102 | with Digital Indicator (35-128) |
Fine Adjustment Set
• 12" reach
• Fine adjustment knob
• Accepts indicators with 3/8"/8 mm stems, lug backs, and dovetails.
| Item # | Description |

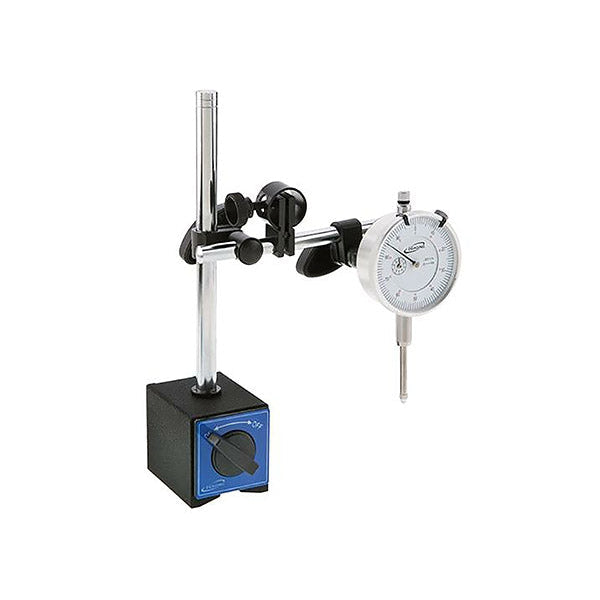

| 34-510 | with Dial Indicator (400-001) |

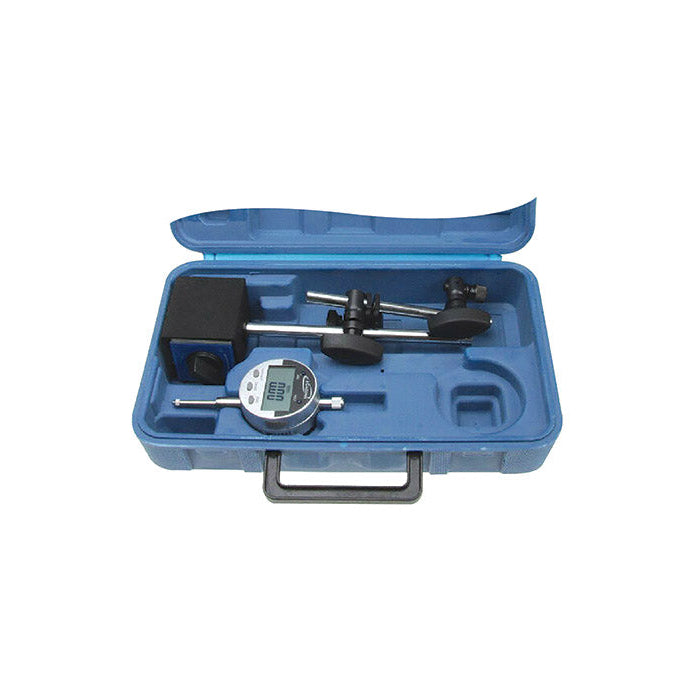

| 35-510 | with Digital Indicator (35-128) |
Universal Arm Set
• 15" total reach
• Accepts indicators with 3/8"/8 mm stems, lug backs, and dovetails
• Set into any position with a single knob
• Fine Adjustment
| Item # | Description |

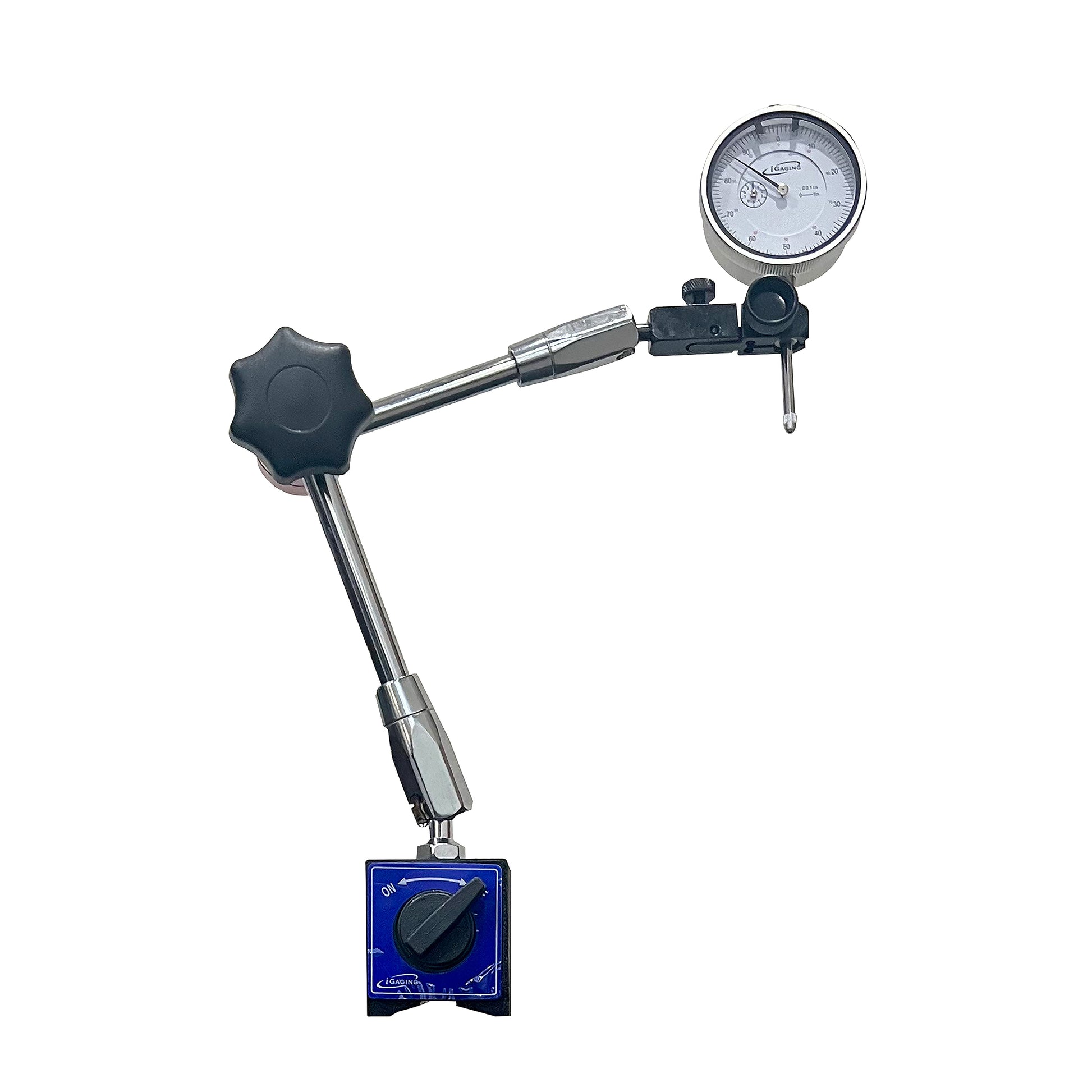

| 34-520 | with Dial Indicator (400-001) |

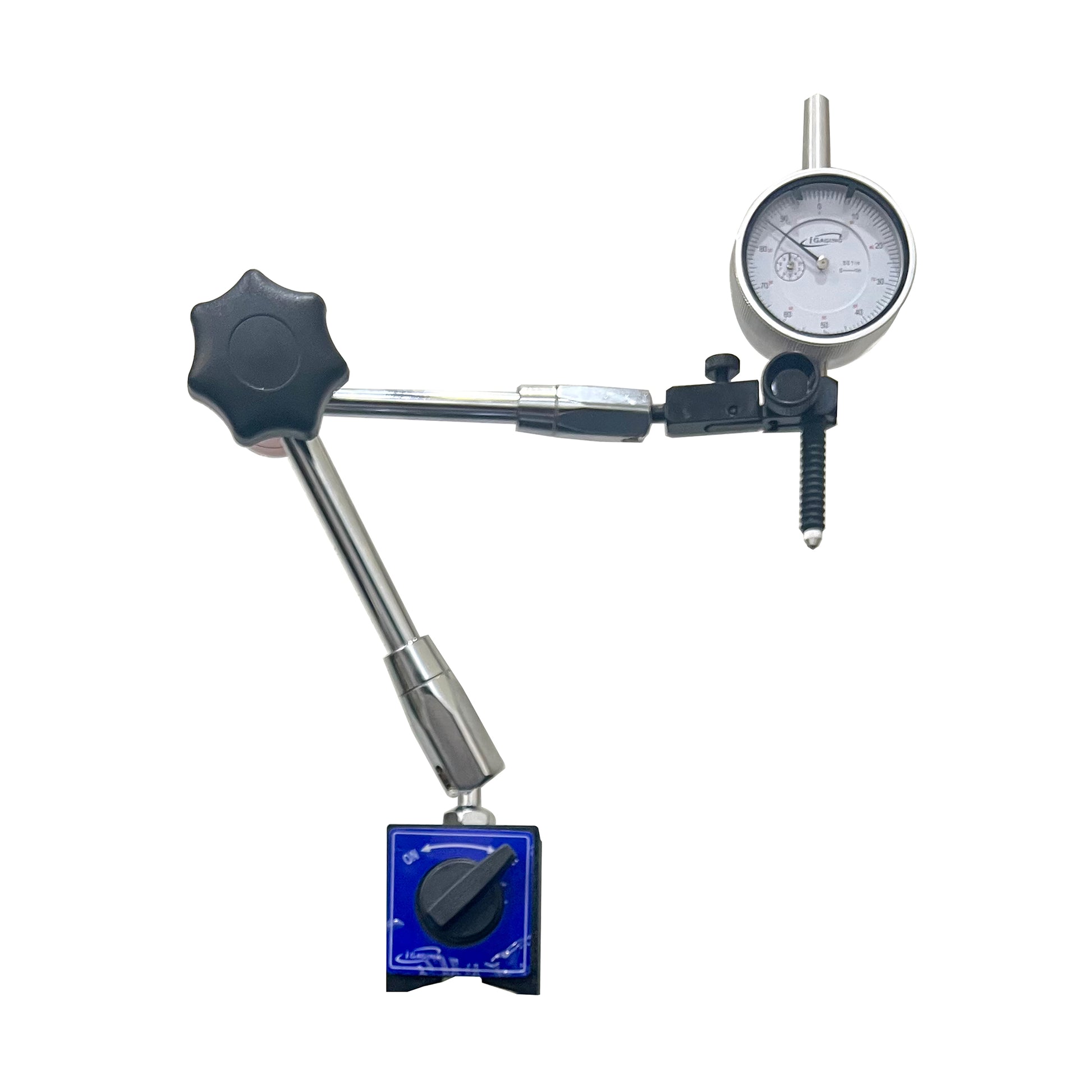

| 35-5265 | with iP65 Dial Indicator (400-065-001) |

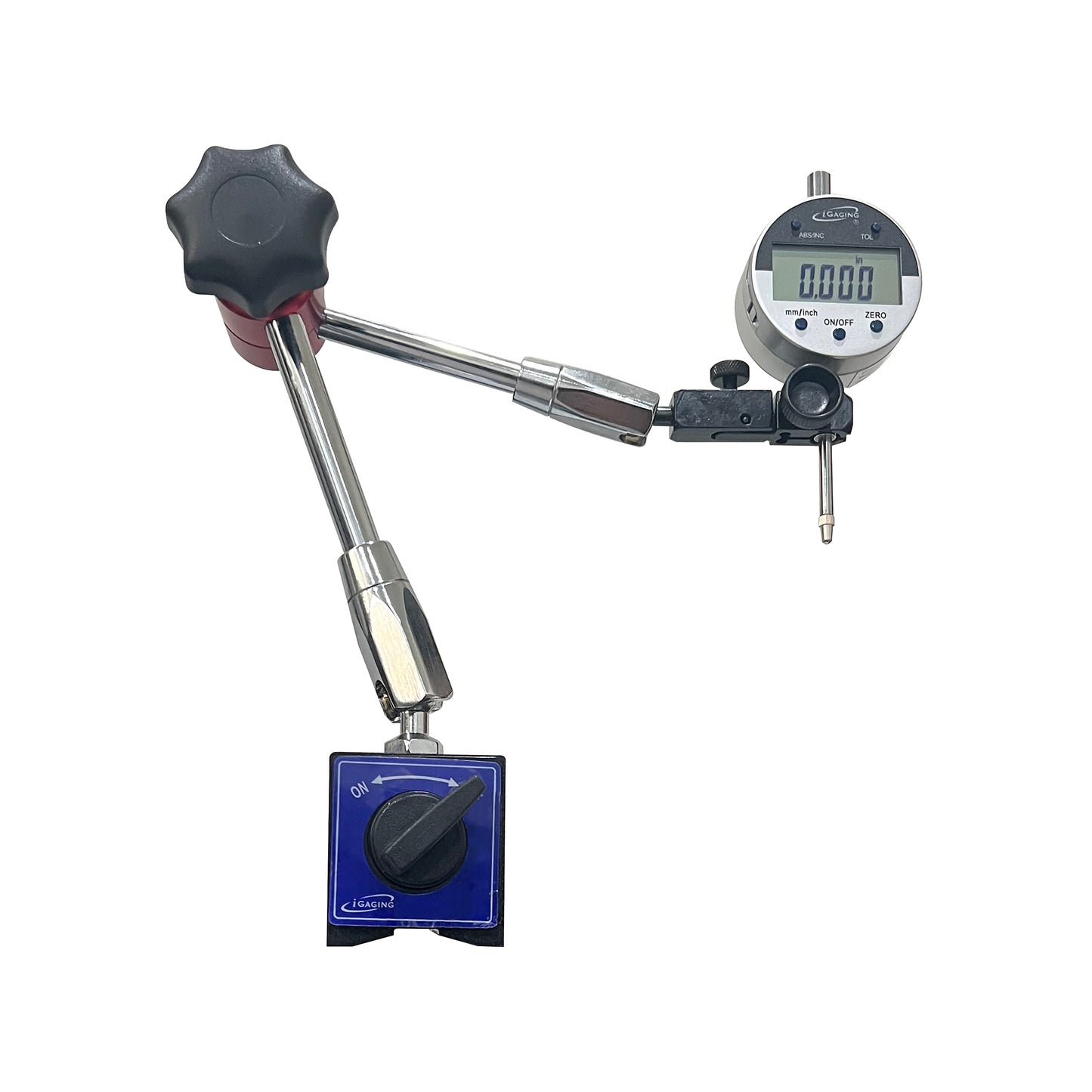

| 35-520 | with Digital Indicator (35-128) |
